MCH6544-TL-E

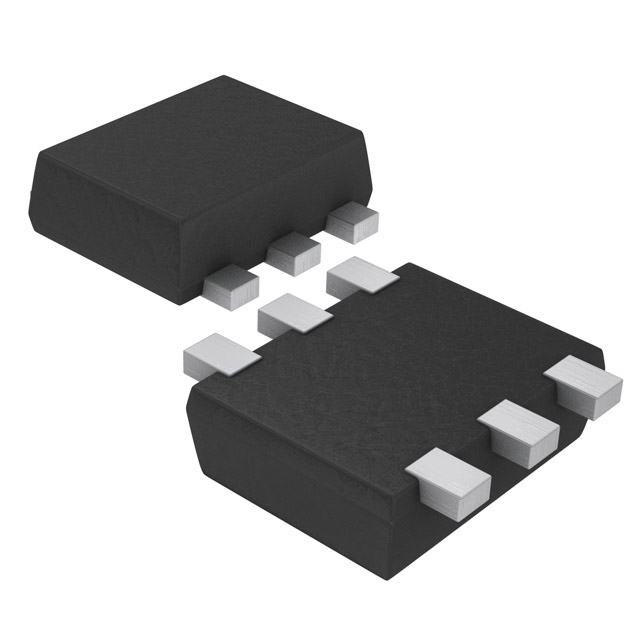

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCH6544-TL-E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MCH6544-TL-E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCH6544-TL-E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS 2NPN 50V 0.5A 6MCPH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.057 | $0.053 | $0.049 | $0.049 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MCH6544-TL-E | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS 2NPN 50V 0.5A 6MCPH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 429396 pcs | Data sheet | MCH6544 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 10mA, 100mA | Transistor Type | 2 NPN (Dual) |
| Supplier Device Package | 6-MCPH | Series | - |
| Power - Max | 550mW | Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Flat Leads | Other Names | MCH6544-TL-E-ND MCH6544-TL-EOSTR |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 500MHz |
| Detailed Description | Bipolar (BJT) Transistor Array 2 NPN (Dual) 50V 500mA 500MHz 550mW Surface Mount 6-MCPH | DC Current Gain (hFE) (Min) @ Ic, Vce | 800 @ 10mA, 2V |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | Current - Collector (Ic) (Max) | 500mA |
