MAN6960

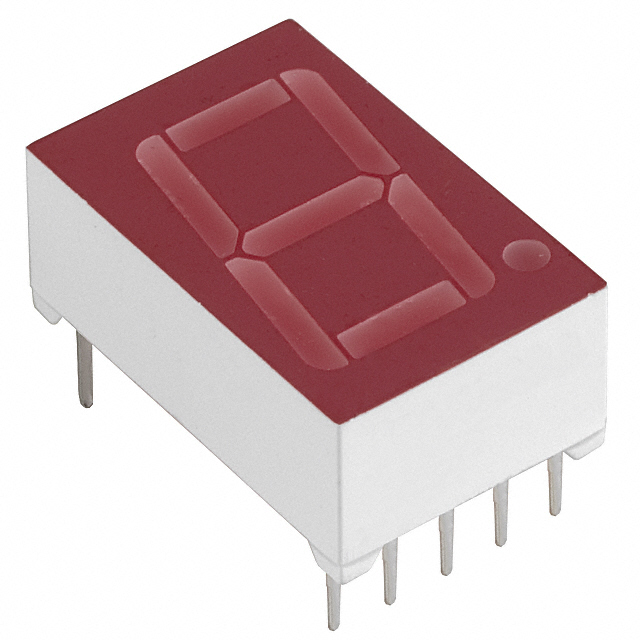

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAN6960 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MAN6960 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MAN6960 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | LED 7-SEG SGL CA RED RHDP .56" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MAN6960 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | LED 7-SEG SGL CA RED RHDP .56" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4637 pcs | Data sheet | MAN6900 Series |
| Category | Optoelectronics | Wavelength - Peak | 635nm |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) | Size / Dimension | 0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm) |
| Series | - | Power Dissipation (Max) | 600mW |
| Packaging | Bulk | Package / Case | 10-DIP (0.600", 15.24mm) |
| Number of Characters | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Millicandela Rating | 2.2mcd | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.56" (14.22mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Anode 2.5V (Max) 20mA 0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm) 10-DIP (0.600", 15.24mm) | Current - Test | 20mA |
| Common Pin | Common Anode | Color | Red |
