LV8804FV-MPB-H

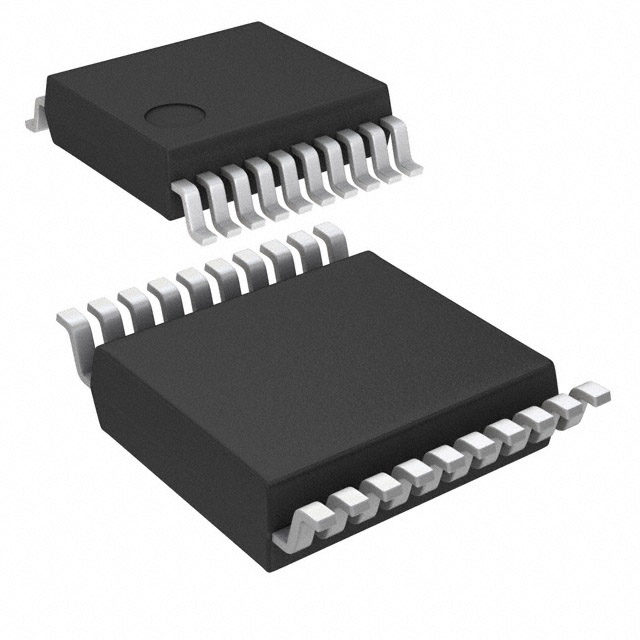

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LV8804FV-MPB-H with confidence from Components-World.HK, 1 Year Warranty
Dowload LV8804FV-MPB-H Details in PDFSee Product Specifications for product details.
Buy LV8804FV-MPB-H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LV8804FV-MPB-H |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC MOTOR DRIVER PWM 20SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LV8804FV-MPB-H | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC MOTOR DRIVER PWM 20SSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5203 pcs | Data sheet | LV8804FV Product OverviewLV8804FV |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 6 V ~ 15 V |
| Voltage - Load | 6 V ~ 15 V | Technology | Bi-CMOS |
| Supplier Device Package | 20-SSOPJ | Step Resolution | - |
| Series | - | Packaging | Tape & Box (TB) |
| Package / Case | 20-LFSOP (0.173", 4.40mm Width) | Output Configuration | Half Bridge (3) |
| Other Names | LV8804FV-MPB-H-ND LV8804FV-MPB-HOSTB LV8804FVMPBH |
Operating Temperature | -30°C ~ 95°C (TA) |
| Mounting Type | Surface Mount | Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | On/Off |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Motor Driver Bi-CMOS On/Off 20-SSOPJ |
| Current - Output | 1.2A | Base Part Number | LV8804 |
| Applications | General Purpose |
