LV8736V-MPB-H

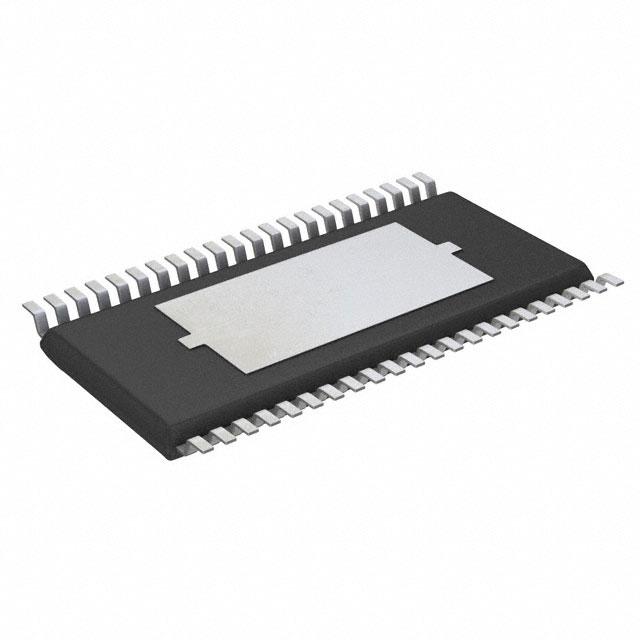

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LV8736V-MPB-H with confidence from Components-World.HK, 1 Year Warranty
Dowload LV8736V-MPB-H Details in PDFSee Product Specifications for product details.
Buy LV8736V-MPB-H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LV8736V-MPB-H |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC MOTOR DRIVER PAR 44SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LV8736V-MPB-H | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 44SSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5321 pcs | Data sheet | LV8736VLV8736V Product Overview |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 0 V ~ 5.5 V |
| Voltage - Load | 9 V ~ 32 V | Technology | BiCDMOS |
| Supplier Device Package | 44-SSOPK | Step Resolution | 1, 1/2, 1/4, 1/8 |
| Series | - | Packaging | Tube |
| Package / Case | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad | Output Configuration | Half Bridge (4) |
| Other Names | LV8736V-MPB-HOS LV8736VMPBH |
Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Bipolar Motor Driver BiCDMOS Parallel 44-SSOPK |
| Current - Output | 1A | Base Part Number | LV8736V |
| Applications | General Purpose |
