Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > LV8402GPEVB

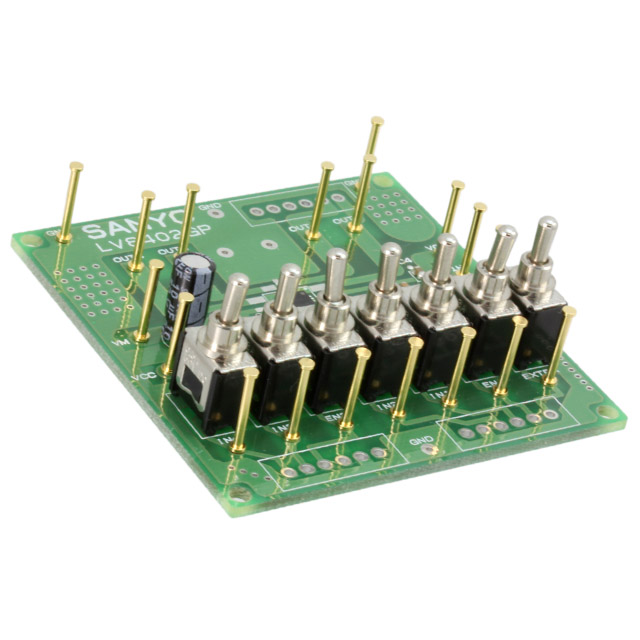

LV8402GPEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LV8402GPEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LV8402GPEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVAL LV8402GP MOTOR DRIVER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2207 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$15.377

Product parameter
Data sheet

Product parameter

Part Number	LV8402GPEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVAL LV8402GP MOTOR DRIVER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2207 pcs	Data sheet	LV8402GP Application Note LV8402GP
Category	Development Boards, Kits, Programmers	Utilized IC / Part	LV8402GP
Type	Power Management	Supplied Contents	Board(s)
Series	-	Secondary Attributes	Thermal Shutdown Circuit
Primary Attributes	2 Channel H-Bridge Driver	Other Names	LV8402GPEVB-ND LV8402GPEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Motor Controller/Driver	Embedded	No
Detailed Description	LV8402GP Motor Controller/Driver Power Management Evaluation Board
