Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > LV5636VHGEVB

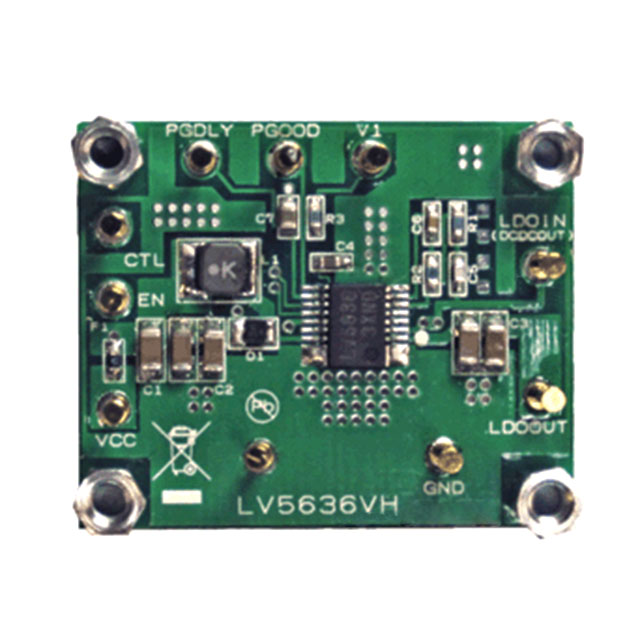

LV5636VHGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LV5636VHGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LV5636VHGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD LV5636VHG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 757 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$40.407

Product parameter
Data sheet

Product parameter

Part Number	LV5636VHGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD LV5636VHG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	757 pcs	Data sheet	LV5636VHGEVB Test Procedure LV5636VH
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	8 V ~ 23 V	Utilized IC / Part	LV5636
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost	Outputs and Type	2, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	DC/DC, Step Up with LDO
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	1MHz
Detailed Description	LV5636 - DC/DC, Step Up with LDO 2, Non-Isolated Outputs Evaluation Board	Current - Output	-
Board Type	Fully Populated
