LM339DR2

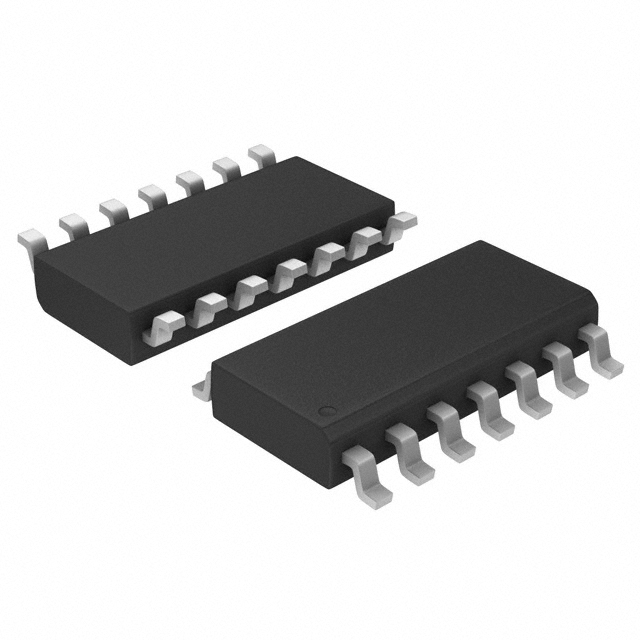

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LM339DR2 with confidence from Components-World.HK, 1 Year Warranty
Dowload LM339DR2 Details in PDFSee Product Specifications for product details.
Buy LM339DR2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LM339DR2 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC COMP QUAD SGL SUPPLY 14SOIC |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.17 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LM339DR2 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC COMP QUAD SGL SUPPLY 14SOIC | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 139014 pcs | Data sheet | LM339,239,2901(V), NCV2901, MC3302 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single/Dual (±) | 3 V ~ 36 V, ±1.5 V ~ 18 V |
| Voltage - Input Offset (Max) | 5mV @ 5V | Type | General Purpose |
| Supplier Device Package | 14-SOIC | Series | - |
| Propagation Delay (Max) | - | Packaging | Cut Tape (CT) |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | Output Type | CMOS, Open-Collector, TTL |
| Other Names | LM339DR2OSCT | Operating Temperature | 0°C ~ 70°C |
| Number of Elements | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Hysteresis | - | Detailed Description | Comparator General Purpose CMOS, Open-Collector, TTL 14-SOIC |
| Current - Quiescent (Max) | 2.5mA | Current - Output (Typ) | 16mA @ 5V |
| Current - Input Bias (Max) | 0.25µA @ 5V | CMRR, PSRR (Typ) | - |
| Base Part Number | LM339 |
