Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > LM2594APDBCKGEVB

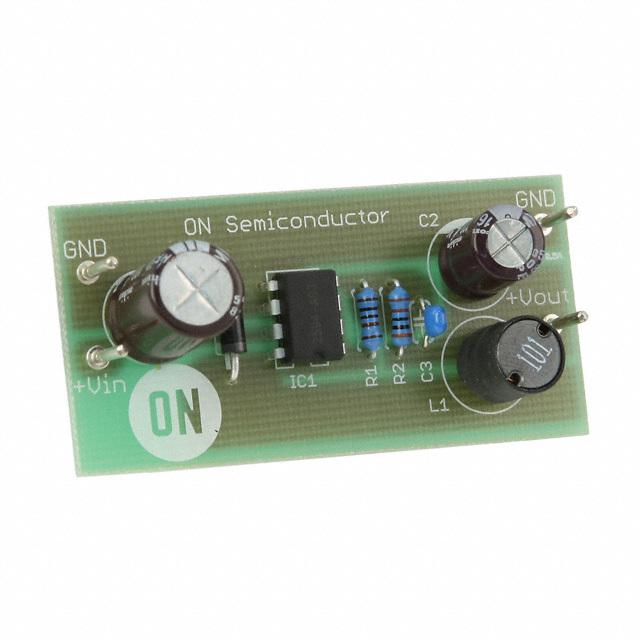

LM2594APDBCKGEVB

LM2594APDBCKGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LM2594APDBCKGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LM2594APDBCKGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR LM2594APDBCKG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1662 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$22.904

Product parameter
Data sheet

Product parameter

Part Number	LM2594APDBCKGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR LM2594APDBCKG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1662 pcs	Data sheet	LM2594 LM2594APDBCKGEVB Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	5V
Voltage - Input	4.5 V ~ 40 V	Utilized IC / Part	LM2594
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	LM2594ADPBCKGEVB LM2594ADPBCKGEVBOS LM2594APDBCKGEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	150kHz	Detailed Description	LM2594 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	500mA	Board Type	Fully Populated
