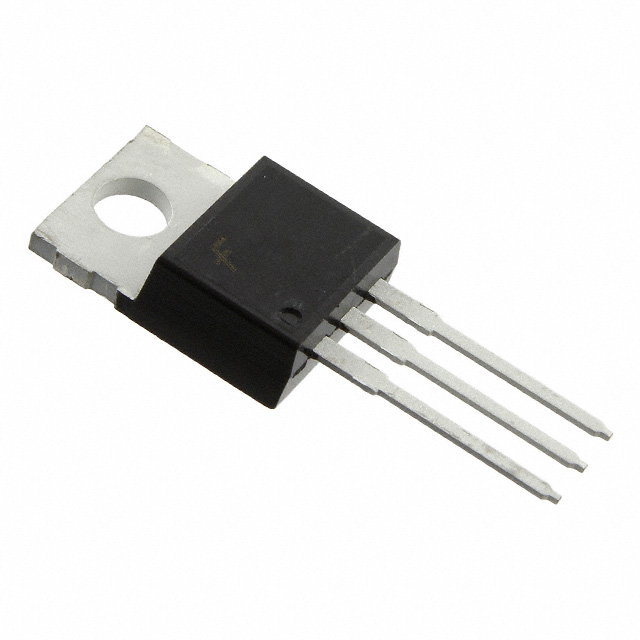

ISL9V5036P3-F085
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL9V5036P3-F085 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ISL9V5036P3-F085 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ISL9V5036P3-F085 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 390V 46A 250W TO220AA-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 400 pcs | 800 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $1.086 | $0.977 | $0.759 | $0.681 | $0.575 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ISL9V5036P3-F085 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IGBT 390V 46A 250W TO220AA-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55230 pcs | Data sheet | ISL9V5036S3S/P3/S3 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 390V |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 4V, 10A | Test Condition | 300V, 1 kOhm, 5V |
| Td (on/off) @ 25°C | -/10.8µs | Switching Energy | - |
| Supplier Device Package | TO-220-3 | Series | Automotive, AEC-Q101, EcoSPARK® |
| Power - Max | 250W | Packaging | Tube |
| Package / Case | TO-220-3 | Other Names | ISL9V5036P3_F085 ISL9V5036P3_F085-ND |
| Operating Temperature | -40°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 42 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Logic |
| IGBT Type | - | Gate Charge | 32nC |
| Detailed Description | IGBT 390V 46A 250W Through Hole TO-220-3 | Current - Collector (Ic) (Max) | 46A |
| Base Part Number | ISL9V5036 |
