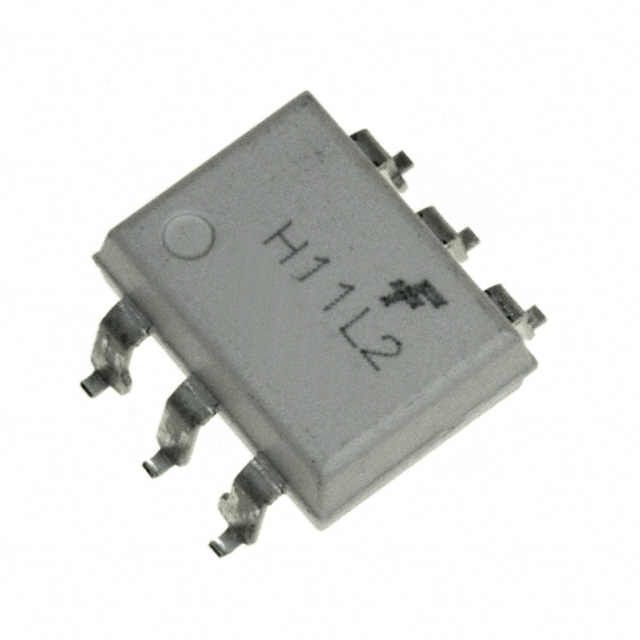

H11L2SVM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H11L2SVM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H11L2SVM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H11L2SVM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV OPN COLL 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.575 | $0.466 | $0.323 | $0.244 | $0.201 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | H11L2SVM | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 4.17KV OPN COLL 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99832 pcs | Data sheet | H11L1M-3M |
| Category | Isolators | Voltage - Supply | 3 V ~ 15 V |
| Voltage - Isolation | 4170Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | 100ns, 100ns | Propagation Delay tpLH / tpHL (Max) | 4µs, 4µs |
| Packaging | Tube | Package / Case | 6-SMD, Gull Wing |
| Output Type | Open Collector | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 1MHz Open Collector 4170Vrms 1 Channel 6-SMD |
| Data Rate | 1MHz | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 30mA | Common Mode Transient Immunity (Min) | - |
