H11G45

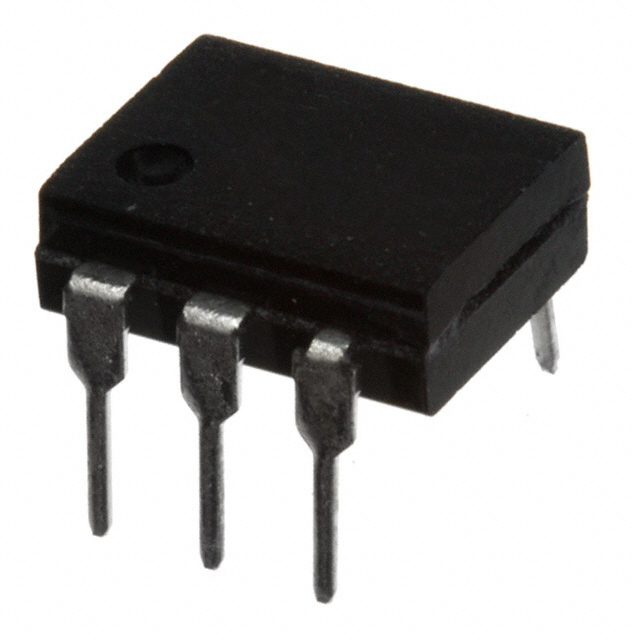

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H11G45 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H11G45 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H11G45 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4KV DARL W/BASE 6DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | H11G45 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 4KV DARL W/BASE 6DIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5048 pcs | Data sheet | |
| Category | Isolators | Voltage - Output (Max) | 55V |
| Voltage - Isolation | 4000Vrms | Voltage - Forward (Vf) (Typ) | 11V |
| Vce Saturation (Max) | - | Turn On / Turn Off Time (Typ) | 5µs, 150µs |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Darlington with Base |
| Other Names | H11G45GE H11G45QT |
Operating Temperature | -55°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Type | DC | Detailed Description | Optoisolator Darlington with Base Output 4000Vrms 1 Channel 6-DIP |
| Current Transfer Ratio (Min) | 250% @ 1mA | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | 100mA | Current - DC Forward (If) (Max) | 60mA |
