H11AV1VM

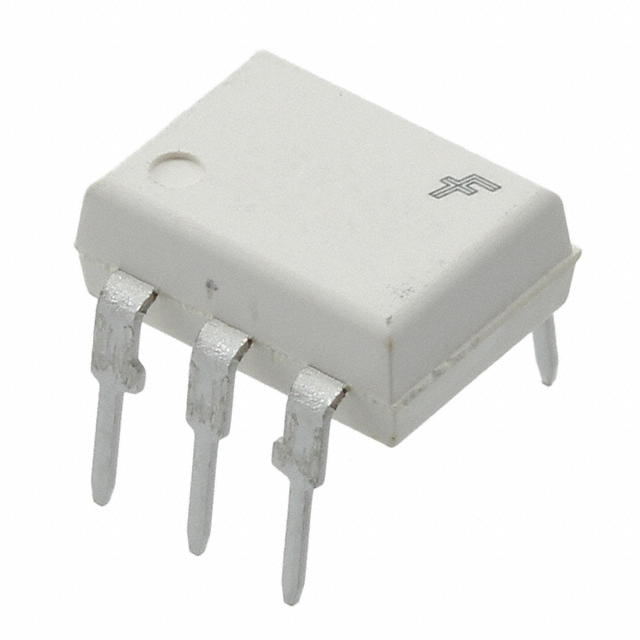

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H11AV1VM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H11AV1VM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H11AV1VM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.386 | $0.301 | $0.215 | $0.163 | $0.129 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | H11AV1VM | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 4.17KV TRANS W/BASE 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 145981 pcs | Data sheet | H11AV1(A)-M, H11AV2(A)-M |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 4170Vrms | Voltage - Forward (Vf) (Typ) | 1.18V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 15µs, 15µs (Max) |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Transistor with Base |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-DIP | Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 300% @ 10mA | Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 60mA |
