Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > H11A2

H11A2

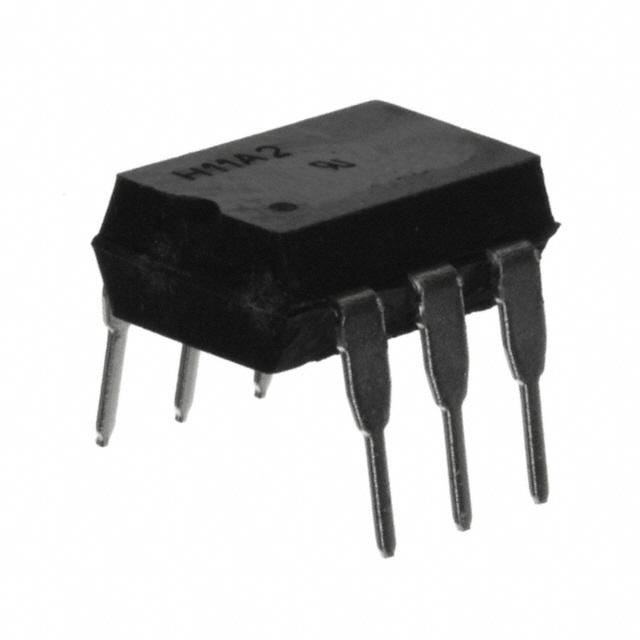

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H11A2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H11A2
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 5.3KV TRANS W/BASE 6DIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5157 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	H11A2	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 5.3KV TRANS W/BASE 6DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5157 pcs	Data sheet	4N25-28, 4N35-37, H11A1-A5
Category	Isolators	Voltage - Output (Max)	30V
Voltage - Isolation	5300Vrms	Voltage - Forward (Vf) (Typ)	1.18V
Vce Saturation (Max)	400mV	Turn On / Turn Off Time (Typ)	2µs, 2µs
Supplier Device Package	6-DIP	Series	-
Rise / Fall Time (Typ)	-	Packaging	Tube
Package / Case	6-DIP (0.300", 7.62mm)	Output Type	Transistor with Base
Other Names	H11A2FS H11A2QT H11A2QT-ND	Operating Temperature	-55°C ~ 100°C
Number of Channels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Current Transfer Ratio (Min)	20% @ 10mA	Current Transfer Ratio (Max)	-
Current - Output / Channel	-	Current - DC Forward (If) (Max)	100mA
