FSQ510MX

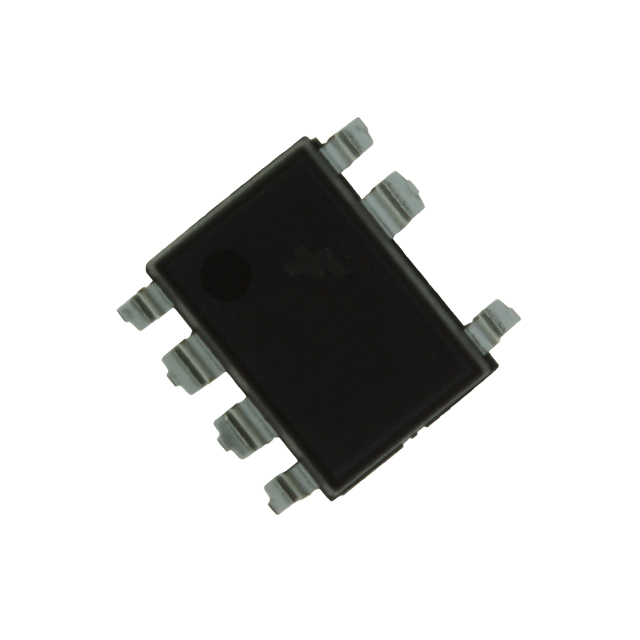

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FSQ510MX with confidence from Components-World.HK, 1 Year Warranty
Dowload FSQ510MX Details in PDFSee Product Specifications for product details.
Buy FSQ510MX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FSQ510MX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC OFFLINE SW PWM 7MLSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $0.58 | $0.52 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FSQ510MX | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC OFFLINE SW PWM 7MLSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73671 pcs | Data sheet | FSQ510/H/M |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 6.7 V ~ 20 V |
| Voltage - Start Up | 8.7V | Voltage - Breakdown | 700V |
| Topology | Flyback | Supplier Device Package | 7-MLSOP |
| Series | FPS™ | Power (Watts) | 9W |
| Packaging | Cut Tape (CT) | Package / Case | 8-SMD (7 Leads), Gull Wing |
| Output Isolation | Isolated | Other Names | FSQ510MXCT |
| Operating Temperature | -40°C ~ 140°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes | Frequency - Switching | 94.3kHz ~ 132kHz |
| Fault Protection | Current Limiting, Over Load, Over Temperature | Duty Cycle | 60% |
| Detailed Description | Converter Offline Flyback Topology 94.3kHz ~ 132kHz 7-MLSOP | Control Features | Sync |
| Base Part Number | FSQ510 |
