FSGM0565RLDTU

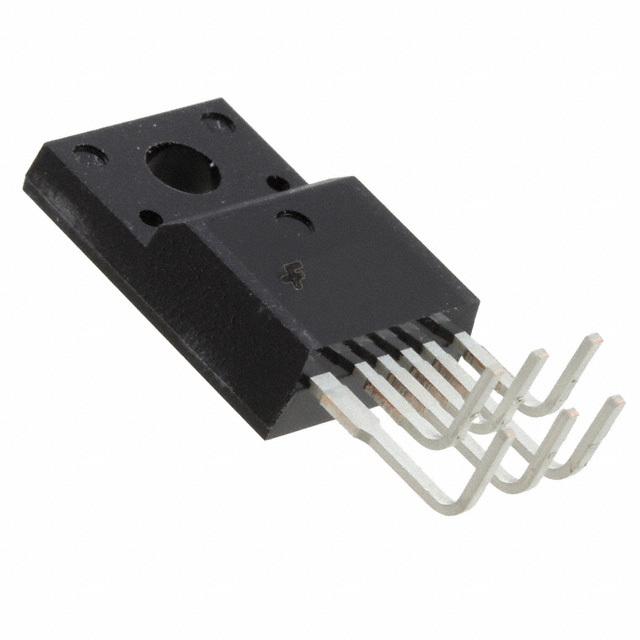

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FSGM0565RLDTU with confidence from Components-World.HK, 1 Year Warranty
Dowload FSGM0565RLDTU Details in PDFSee Product Specifications for product details.
Buy FSGM0565RLDTU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FSGM0565RLDTU |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC PWM/SENSEFET SMPS TO-220F-6L |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 400 pcs | 800 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $0.723 | $0.649 | $0.49 | $0.428 | $0.355 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FSGM0565RLDTU | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC PWM/SENSEFET SMPS TO-220F-6L | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60268 pcs | Data sheet | FSGM0565R |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 7.5 V ~ 26 V |
| Voltage - Start Up | 12V | Voltage - Breakdown | 650V |
| Topology | Flyback | Supplier Device Package | TO-220F-6L (L-Forming) |
| Series | FPS™ | Power (Watts) | 80W |
| Packaging | Tube | Package / Case | TO-220-6 Full Pack, Formed Leads |
| Output Isolation | Isolated | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Yes |
| Frequency - Switching | 66kHz | Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Duty Cycle | 70% | Detailed Description | Converter Offline Flyback Topology 66kHz TO-220F-6L (L-Forming) |
| Control Features | - | Base Part Number | FSGM0565R |
