FSCQ1565RTYDTU

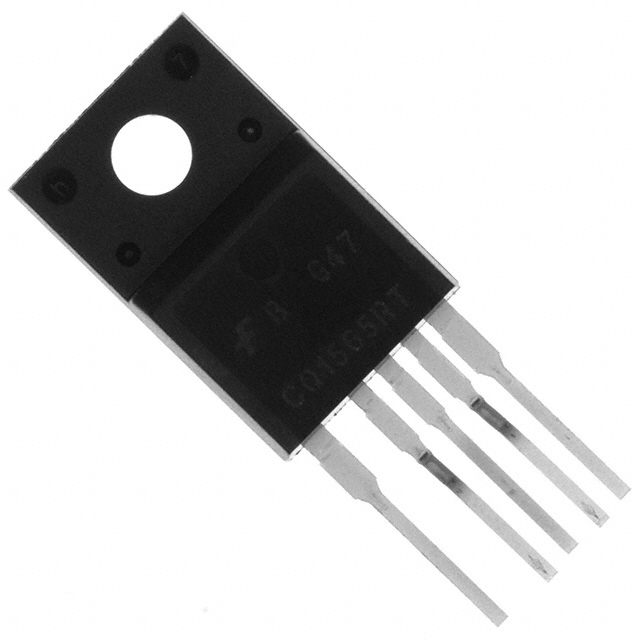

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FSCQ1565RTYDTU with confidence from Components-World.HK, 1 Year Warranty
Dowload FSCQ1565RTYDTU Details in PDFSee Product Specifications for product details.
Buy FSCQ1565RTYDTU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FSCQ1565RTYDTU |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC SWIT PWM GREEN OVP HV TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 400 pcs | 800 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $1.083 | $0.972 | $0.756 | $0.678 | $0.572 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FSCQ1565RTYDTU | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC SWIT PWM GREEN OVP HV TO220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66971 pcs | Data sheet | FSCQ1565R |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 9 V ~ 20 V |
| Voltage - Start Up | 15V | Voltage - Breakdown | 650V |
| Topology | Flyback | Supplier Device Package | TO-220F-5L (Forming) |
| Series | FSCQ | Power (Watts) | 210W |
| Packaging | Tube | Package / Case | TO-220-5 Full Pack (Formed Leads) |
| Output Isolation | Isolated | Other Names | FSCQ1565RTYDTU_NL FSCQ1565RTYDTU_NL-ND |
| Operating Temperature | -25°C ~ 85°C (TA) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes | Frequency - Switching | 20kHz |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | Duty Cycle | 95% |
| Detailed Description | Converter Offline Flyback Topology 20kHz TO-220F-5L (Forming) | Control Features | Sync |
| Base Part Number | FSCQ1565 |
