Home > Products > Integrated Circuits (ICs) > PMIC - Power Distribution Switches, Load Drivers > FPF2201

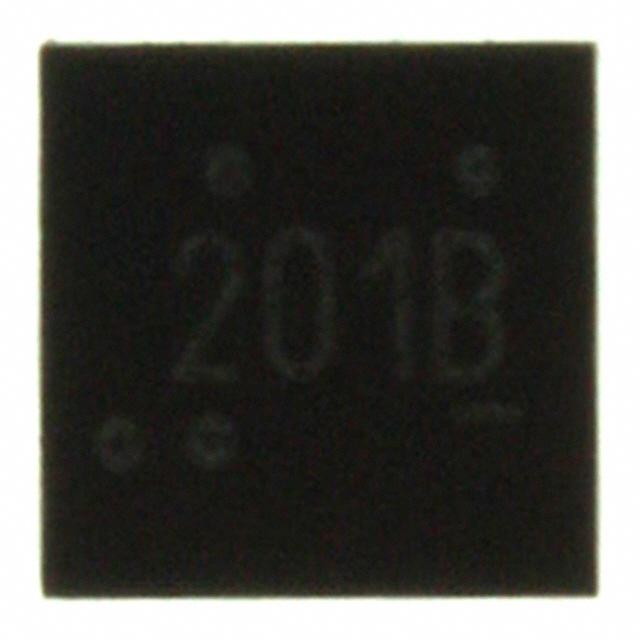

FPF2201

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FPF2201 with confidence from Components-World.HK, 1 Year Warranty

Dowload FPF2201 Details in PDF

Request a Quote

Part Number	FPF2201
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC LOAD SWITCH 500MA 6-MICROFET
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4365 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	FPF2201	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC LOAD SWITCH 500MA 6-MICROFET	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4365 pcs	Data sheet	FPF2200-02
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	Not Required
Voltage - Load	1.8 V ~ 5.5 V	Switch Type	General Purpose
Supplier Device Package	6-MicroFET (2x2)	Series	-
Rds On (Typ)	140 mOhm	Ratio - Input:Output	1:1
Packaging	Tape & Reel (TR)	Package / Case	6-VDFN Exposed Pad
Output Type	P-Channel	Output Configuration	High Side
Other Names	FPF2201TR	Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	On/Off
Input Type	Non-Inverting	Features	Load Discharge, Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature, UVLO	Current - Output (Max)	500mA
Base Part Number	FPF2201
