Home > Products > Integrated Circuits (ICs) > PMIC - Power Distribution Switches, Load Drivers > FPF1009

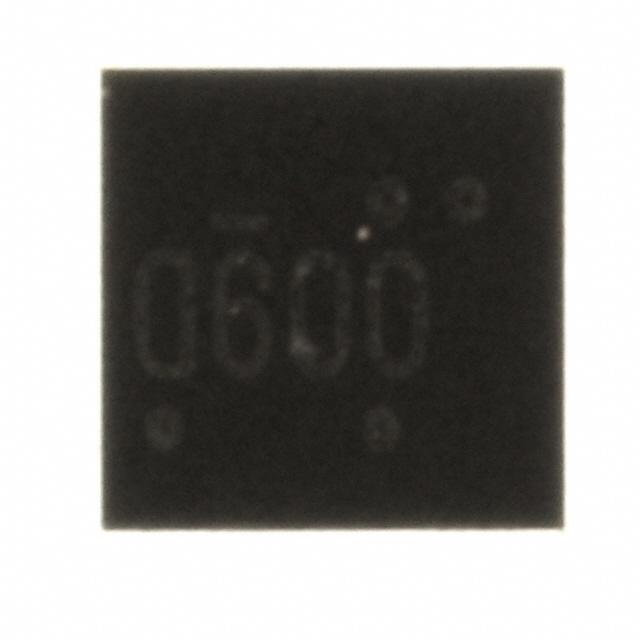

FPF1009

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FPF1009 with confidence from Components-World.HK, 1 Year Warranty

Dowload FPF1009 Details in PDF

Request a Quote

Part Number	FPF1009
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC LOAD SWITCH P-CH 2X2 MICROFET
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 208512 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs	30000 pcs
Reference Price (In US Dollars)	$0.113	$0.105	$0.101	$0.097

Product parameter
Data sheet

Product parameter

Part Number	FPF1009	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC LOAD SWITCH P-CH 2X2 MICROFET	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	208512 pcs	Data sheet	FPF1007-09
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	Not Required
Voltage - Load	1.2 V ~ 5.5 V	Switch Type	General Purpose
Supplier Device Package	6-MicroFET (2x2)	Series	IntelliMAX™
Rds On (Typ)	30 mOhm	Ratio - Input:Output	1:1
Packaging	Tape & Reel (TR)	Package / Case	6-VDFN Exposed Pad
Output Type	P-Channel	Output Configuration	High Side
Other Names	FPF1009TR	Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	On/Off	Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled	Fault Protection	-
Current - Output (Max)	1.5A	Base Part Number	FPF1009
