FODM8071R2

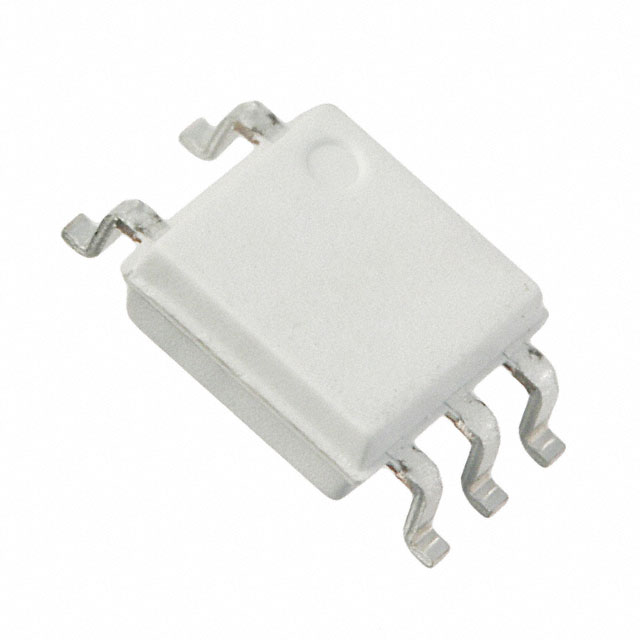

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FODM8071R2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FODM8071R2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FODM8071R2 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 3.75KV PUSH PULL 5MFP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.94 | $0.831 | $0.536 | $0.429 | $0.369 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FODM8071R2 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 3.75KV PUSH PULL 5MFP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88537 pcs | Data sheet | FODM8071 |
| Category | Isolators | Voltage - Supply | 3 V ~ 5.5 V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.35V |
| Supplier Device Package | 5-Mini-Flat | Series | - |
| Rise / Fall Time (Typ) | 5.8ns, 5.3ns | Propagation Delay tpLH / tpHL (Max) | 55ns, 55ns |
| Packaging | Cut Tape (CT) | Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Output Type | Push-Pull, Totem Pole | Other Names | FODM8071R2CT |
| Operating Temperature | -40°C ~ 110°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 1/0 | Input Type | DC |
| Detailed Description | Logic Output Optoisolator 20Mbps Push-Pull, Totem Pole 3750Vrms 1 Channel 20kV/µs CMTI 5-Mini-Flat | Data Rate | 20Mbps |
| Current - Output / Channel | 10mA | Current - DC Forward (If) (Max) | 20mA |
| Common Mode Transient Immunity (Min) | 20kV/µs |
