Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > FOD8523SD

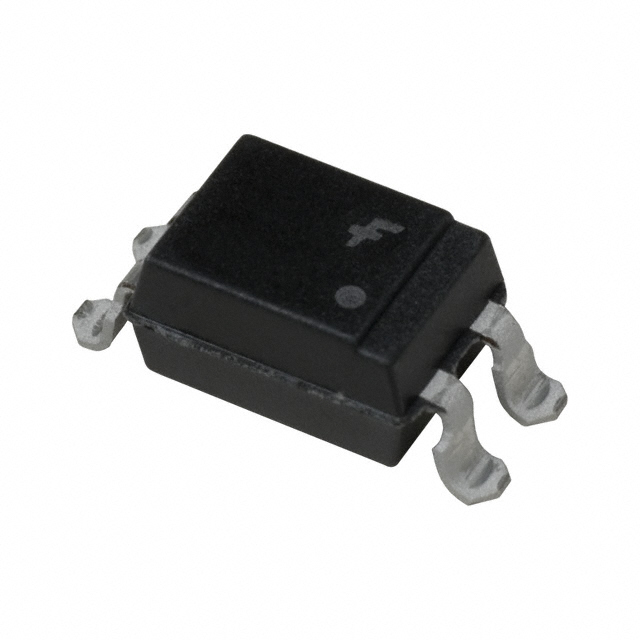

FOD8523SD

FOD8523SD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FOD8523SD with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number FOD8523SD
Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISOLATOR 5KV DARLINGTON 4SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 188671 pcs
Reference Price
(In US Dollars)		1000 pcs2000 pcs5000 pcs10000 pcs25000 pcs
$0.14$0.133$0.13$0.125$0.121

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.14

Product parameter

Part Number FOD8523SD Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISOLATOR 5KV DARLINGTON 4SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 188671 pcs Data sheet FOD852
Category Isolators Voltage - Output (Max) 300V
Voltage - Isolation 5000Vrms Voltage - Forward (Vf) (Typ) 1.2V
Vce Saturation (Max) 1.2V Turn On / Turn Off Time (Typ) -
Supplier Device Package 4-SMD Series -
Rise / Fall Time (Typ) 100µs, 20µs Packaging Tape & Reel (TR)
Package / Case 4-SMD, Gull Wing Output Type Darlington
Other Names FOD8523SD-ND
FOD8523SDTR		 Operating Temperature -30°C ~ 100°C
Number of Channels 1 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 8 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Type DC
Detailed Description Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD Current Transfer Ratio (Min) 1000% @ 1mA
Current Transfer Ratio (Max) 15000% @ 1mA Current - Output / Channel 150mA
Current - DC Forward (If) (Max) 50mA
