FGPF30N30TDTU

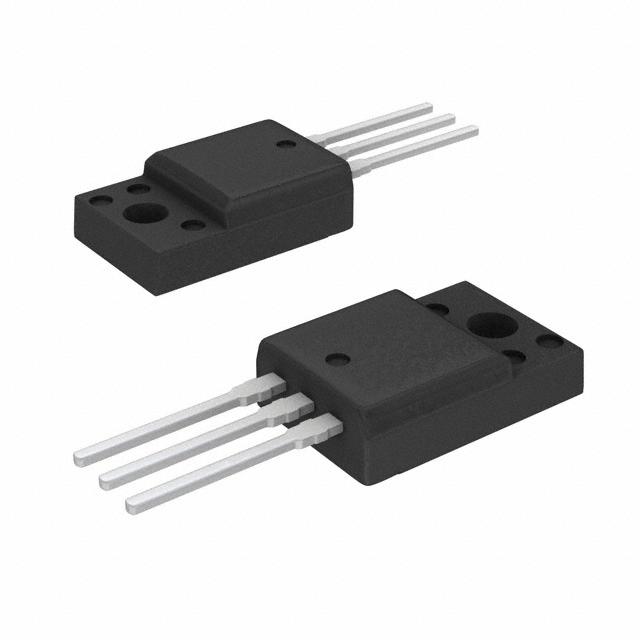

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FGPF30N30TDTU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FGPF30N30TDTU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FGPF30N30TDTU |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 300V 44.6W TO220F |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FGPF30N30TDTU | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IGBT 300V 44.6W TO220F | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5458 pcs | Data sheet | FGPF30N30TD |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 300V |
| Vce(on) (Max) @ Vge, Ic | 1.5V @ 15V, 10A | Test Condition | 200V, 20A, 20 Ohm, 15V |
| Td (on/off) @ 25°C | 22ns/130ns | Switching Energy | - |
| Supplier Device Package | TO-220F | Series | - |
| Reverse Recovery Time (trr) | 22ns | Power - Max | 44.6W |
| Packaging | Tube | Package / Case | TO-220-3 Full Pack |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard | IGBT Type | Trench |
| Gate Charge | 65nC | Detailed Description | IGBT Trench 300V 44.6W Through Hole TO-220F |
| Current - Collector Pulsed (Icm) | 80A | Base Part Number | FGPF30N30 |
