Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > FGAF20N60SMD

FGAF20N60SMD

FGAF20N60SMD

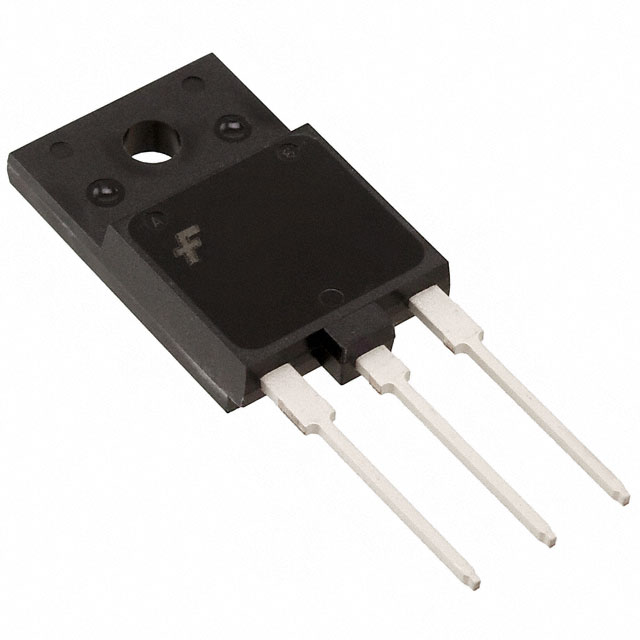

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FGAF20N60SMD with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number FGAF20N60SMD
Manufacturer AMI Semiconductor / ON Semiconductor
Description IGBT 600V 40A 62.5W TO-3PF
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 43784 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs360 pcs720 pcs1080 pcs
$1.429$1.282$0.997$0.894$0.754

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.429

Product parameter

Part Number FGAF20N60SMD Manufacturer AMI Semiconductor / ON Semiconductor
Description IGBT 600V 40A 62.5W TO-3PF Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 43784 pcs Data sheet FGAF20N60SMD
Category Discrete Semiconductor Products Voltage - Collector Emitter Breakdown (Max) 600V
Vce(on) (Max) @ Vge, Ic 1.7V @ 15V, 20A Test Condition 400V, 20A, 10 Ohm, 15V
Td (on/off) @ 25°C 12ns/91ns Switching Energy 452µJ (on), 141µJ (off)
Supplier Device Package TO-3PF Series -
Reverse Recovery Time (trr) 26.7ns Power - Max 75W
Packaging Tube Package / Case SC-94
Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Type Standard IGBT Type Field Stop
Gate Charge 64nC Detailed Description IGBT Field Stop 600V 40A 75W Through Hole TO-3PF
Current - Collector Pulsed (Icm) 60A Current - Collector (Ic) (Max) 40A
