FDZ7296

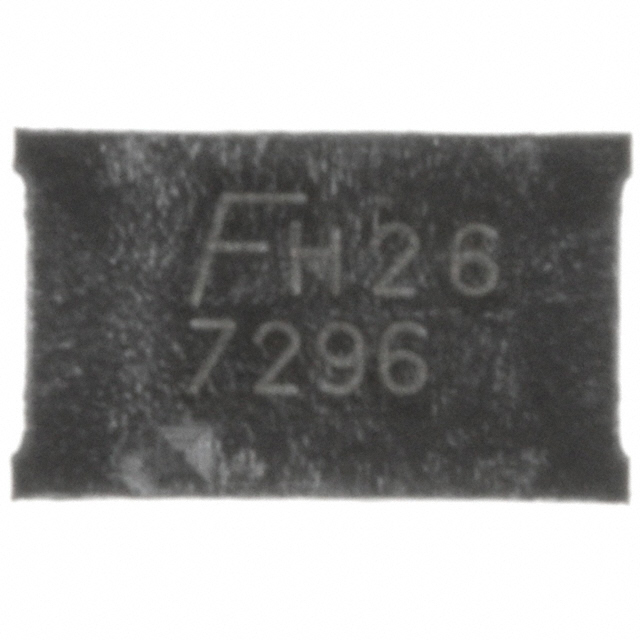

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDZ7296 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDZ7296 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDZ7296 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 30V 11A BGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDZ7296 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 30V 11A BGA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3966 pcs | Data sheet | FDZ7296 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 18-BGA (2.5x4) | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 8.5 mOhm @ 11A, 10V | Power Dissipation (Max) | 2.1W (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 18-WFBGA |
| Other Names | FDZ7296-ND FDZ7296TR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1520pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 31nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 11A (Ta) 2.1W (Ta) Surface Mount 18-BGA (2.5x4) |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) |
