FDMS7620S

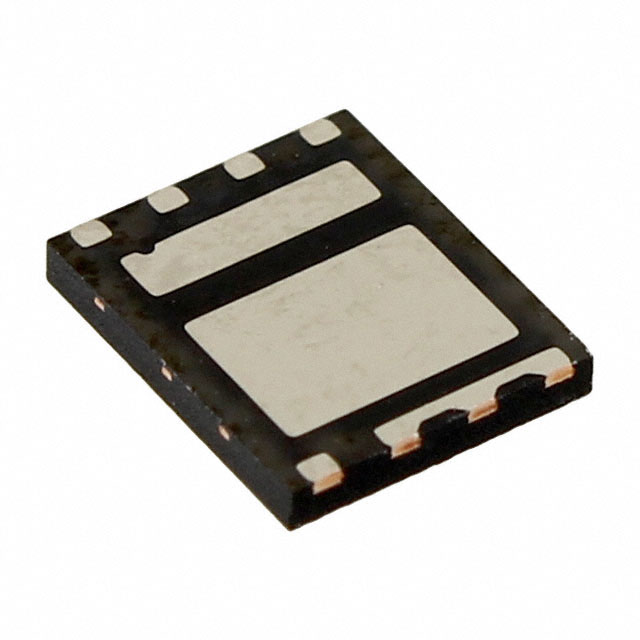

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMS7620S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMS7620S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMS7620S |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2N-CH 30V POWER56 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.21 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMS7620S | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET 2N-CH 30V POWER56 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 107305 pcs | Data sheet | FDMS7620S |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | Power56 | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 20 mOhm @ 10.1A, 10V | Power - Max | 1W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDMS7620S-ND FDMS7620S_F065 FDMS7620S_F065TR FDMS7620S_F065TR-ND FDMS7620STR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 608pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 11nC @ 10V |
| FET Type | 2 N-Channel (Dual) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | Mosfet Array 2 N-Channel (Dual) 30V 10.1A, 12.4A 1W Surface Mount Power56 |
| Current - Continuous Drain (Id) @ 25°C | 10.1A, 12.4A |
