FDMS3602AS

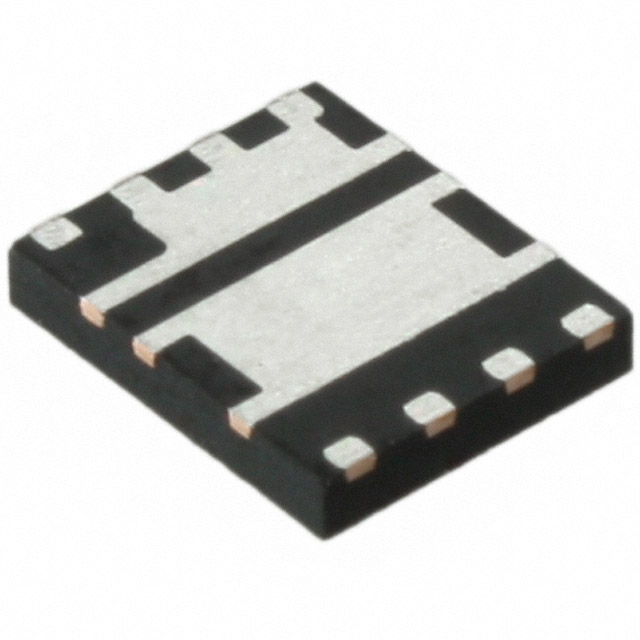

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMS3602AS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMS3602AS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMS3602AS |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2N-CH 25V 15A/26A POWER56 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.681 | $0.615 | $0.494 | $0.384 | $0.318 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMS3602AS | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET 2N-CH 25V 15A/26A POWER56 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61856 pcs | Data sheet | FDMS3602AS |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | Power56 | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 5.6 mOhm @ 15A, 10V | Power - Max | 2.2W, 2.5W |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerTDFN |
| Other Names | FDMS3602ASCT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 39 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1770pF @ 13V | Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| FET Type | 2 N-Channel (Dual) Asymmetrical | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 25V | Detailed Description | Mosfet Array 2 N-Channel (Dual) Asymmetrical 25V 15A, 26A 2.2W, 2.5W Surface Mount Power56 |
| Current - Continuous Drain (Id) @ 25°C | 15A, 26A |
