FDMF5820TDC

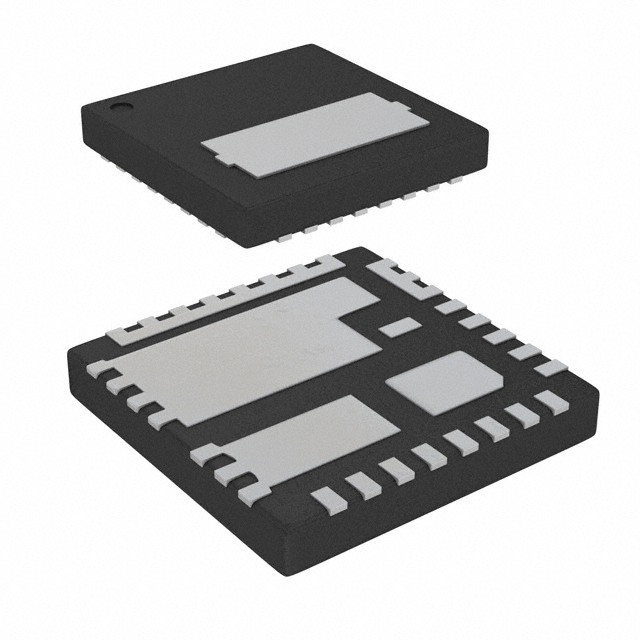

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMF5820TDC with confidence from Components-World.HK, 1 Year Warranty
Dowload FDMF5820TDC Details in PDFSee Product Specifications for product details.
Buy FDMF5820TDC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMF5820TDC |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC SPS HALF-BRIDGE DRVR 31PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.61 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMF5820TDC | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC SPS HALF-BRIDGE DRVR 31PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58428 pcs | Data sheet | FDMF5820TDC |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Load | 4.5 V ~ 16 V | Technology | Power MOSFET |
| Supplier Device Package | 31-PQFN (5x5) | Series | PowerTrench® |
| Rds On (Typ) | - | Packaging | Tape & Reel (TR) |
| Package / Case | 31-PowerWFQFN | Output Configuration | Half Bridge |
| Other Names | FDMF5820TDCTR | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | PWM |
| Features | Bootstrap Circuit, Diode Emulation, Status Flag | Fault Protection | Over Temperature, UVLO |
| Detailed Description | Half Bridge Driver DC-DC Converters, Synchronous Buck Converter Power MOSFET 31-PQFN (5x5) | Current - Peak Output | - |
| Current - Output / Channel | 60A | Applications | DC-DC Converters, Synchronous Buck Converter |
