FDMD8680

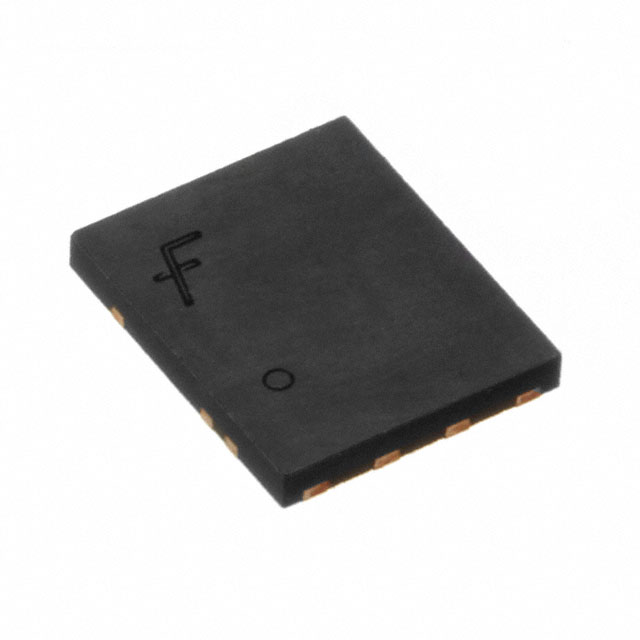

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMD8680 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMD8680 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMD8680 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2 N-CH 80V 66A 8-PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.373 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMD8680 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET 2 N-CH 80V 66A 8-PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89154 pcs | Data sheet | FDMD8680 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-PQFN (5x6) | Series | - |
| Rds On (Max) @ Id, Vgs | 4.7 mOhm @ 16A, 10V | Power - Max | 39W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDMD8680-ND FDMD8680OSTR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 39 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 5330pF @ 40V | Gate Charge (Qg) (Max) @ Vgs | 73nC @ 10V |
| FET Type | 2 N-Channel (Dual) | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 80V | Detailed Description | Mosfet Array 2 N-Channel (Dual) 80V 66A (Tc) 39W Surface Mount 8-PQFN (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 66A (Tc) |
