FDMC7660DC

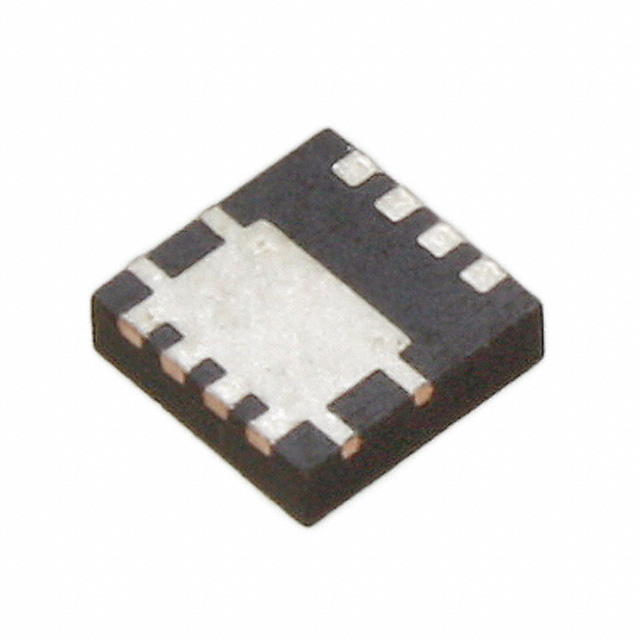

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMC7660DC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC7660DC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMC7660DC |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 30V 40A POWER33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.829 | $0.749 | $0.602 | $0.468 | $0.388 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMC7660DC | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 30V 40A POWER33 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78149 pcs | Data sheet | FDMC7660DC |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | Dual Cool ™ 33 | Series | Dual Cool™, PowerTrench® |
| Rds On (Max) @ Id, Vgs | 2.2 mOhm @ 22A, 10V | Power Dissipation (Max) | 3W (Ta), 78W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerTDFN |
| Other Names | FDMC7660DCCT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 38 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 5170pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 76nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 30A (Ta), 40A (Tc) 3W (Ta), 78W (Tc) Surface Mount Dual Cool ™ 33 | Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 40A (Tc) |
