FDI030N06

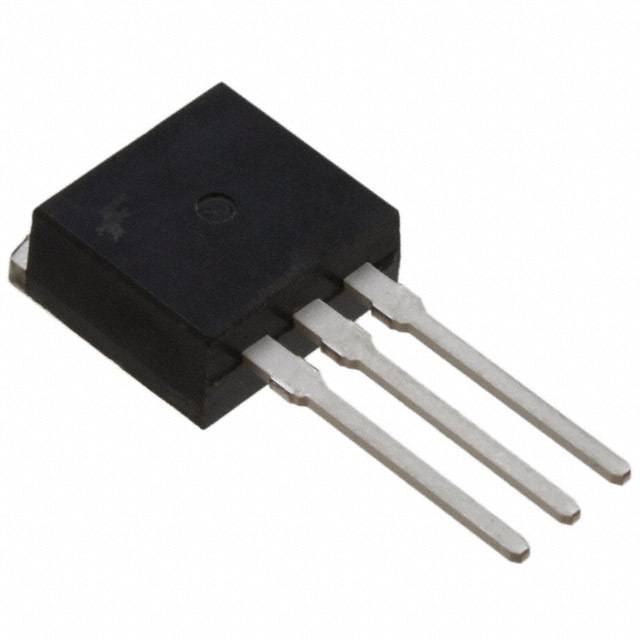

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDI030N06 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDI030N06 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDI030N06 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 60V 120A I2PAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.082 | $1.858 | $1.524 | $1.234 | $1.041 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FDI030N06 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 60V 120A I2PAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37371 pcs | Data sheet | FDI030N06 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | I2PAK (TO-262) | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 3.2 mOhm @ 75A, 10V | Power Dissipation (Max) | 231W (Tc) |
| Packaging | Tube | Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 9815pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 151nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | N-Channel 60V 120A (Tc) 231W (Tc) Through Hole I2PAK (TO-262) | Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
