FDD1600N10ALZD

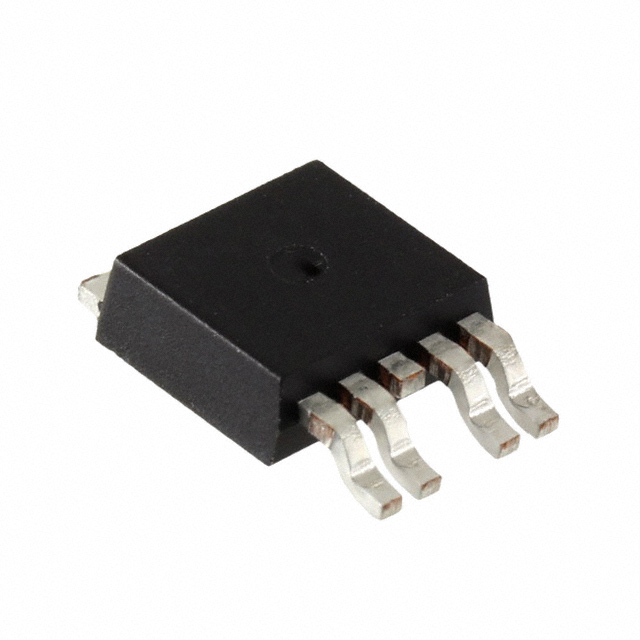

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDD1600N10ALZD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDD1600N10ALZD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDD1600N10ALZD |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 100V 6.8A TO252-5L |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.379 | $0.337 | $0.267 | $0.207 | $0.163 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FDD1600N10ALZD | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 100V 6.8A TO252-5L | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 139081 pcs | Data sheet | FDD1600N10ALZD |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-252-5 | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 160 mOhm @ 3.4A, 10V | Power Dissipation (Max) | 14.9W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Other Names | FDD1600N10ALZDCT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 225pF @ 50V | Gate Charge (Qg) (Max) @ Vgs | 3.61nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 6.8A (Tc) 14.9W (Tc) Surface Mount TO-252-5 | Current - Continuous Drain (Id) @ 25°C | 6.8A (Tc) |
