FDAF59N30

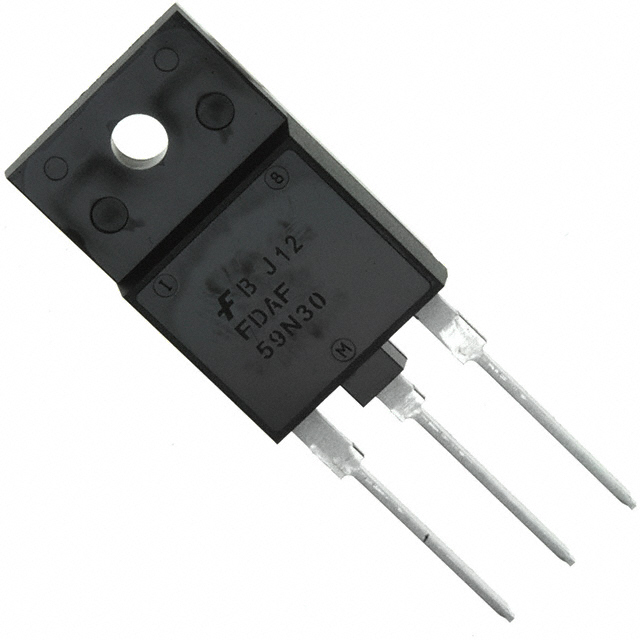

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDAF59N30 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDAF59N30 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDAF59N30 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 300V 34A TO-3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDAF59N30 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 300V 34A TO-3PF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4773 pcs | Data sheet | FDAF59N30 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-3PF | Series | UniFET™ |
| Rds On (Max) @ Id, Vgs | 56 mOhm @ 17A, 10V | Power Dissipation (Max) | 161W (Tc) |
| Packaging | Tube | Package / Case | SC-94 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 4670pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 100nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 300V |
| Detailed Description | N-Channel 300V 34A (Tc) 161W (Tc) Through Hole TO-3PF | Current - Continuous Drain (Id) @ 25°C | 34A (Tc) |
