FCPF9N60NTYDTU

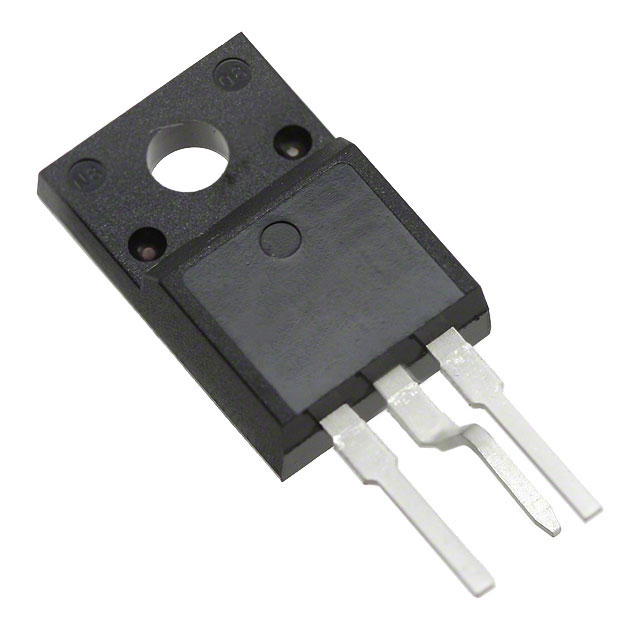

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FCPF9N60NTYDTU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FCPF9N60NTYDTU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FCPF9N60NTYDTU |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 600V 9A TO220F |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | ||||
|---|---|---|---|---|---|
| $1.012 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FCPF9N60NTYDTU | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 600V 9A TO220F | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30373 pcs | Data sheet | FCPF9N60N, FCPF9N60T |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220F-3 (Y-Forming) | Series | SupreMOS™ |
| Rds On (Max) @ Id, Vgs | 385 mOhm @ 4.5A, 10V | Power Dissipation (Max) | 29.8W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 Full Pack, Formed Leads |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1240pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 29nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 9A (Tc) 29.8W (Tc) Through Hole TO-220F-3 (Y-Forming) |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
