FAN8741MTFX

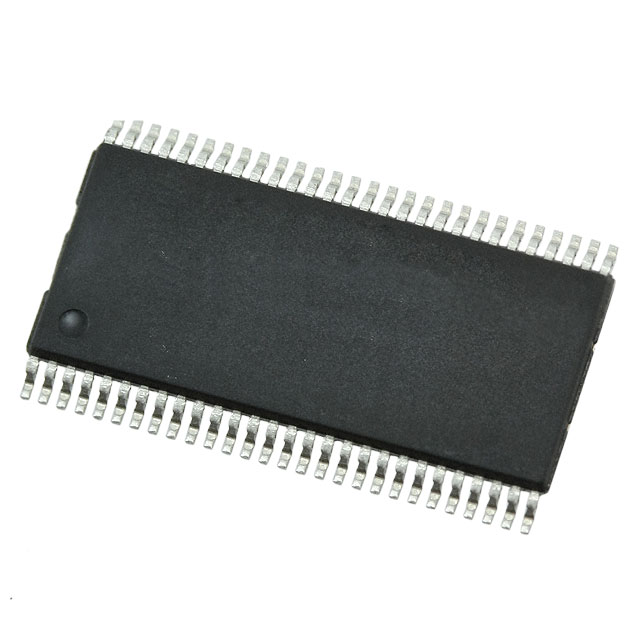

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FAN8741MTFX with confidence from Components-World.HK, 1 Year Warranty
Dowload FAN8741MTFX Details in PDFSee Product Specifications for product details.
Buy FAN8741MTFX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FAN8741MTFX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC MOTOR DRIVER PAR 56TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FAN8741MTFX | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 56TSSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6038 pcs | Data sheet | FAN8741/42 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4.5 V ~ 13.2 V |
| Voltage - Load | 4.5 V ~ 13.2 V | Technology | DMOS |
| Supplier Device Package | 56-TSSOP-EP | Step Resolution | - |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) Exposed Pad | Output Configuration | Half Bridge (7) |
| Other Names | FAN8741MTFX_NLCT FAN8741MTFX_NLCT-ND FAN8741MTFXCT |
Operating Temperature | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Motor Driver DMOS Parallel 56-TSSOP-EP |
| Current - Output | 2A, 1A | Base Part Number | FAN8741 |
| Applications | Media Player |
