Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > FAN501MPX

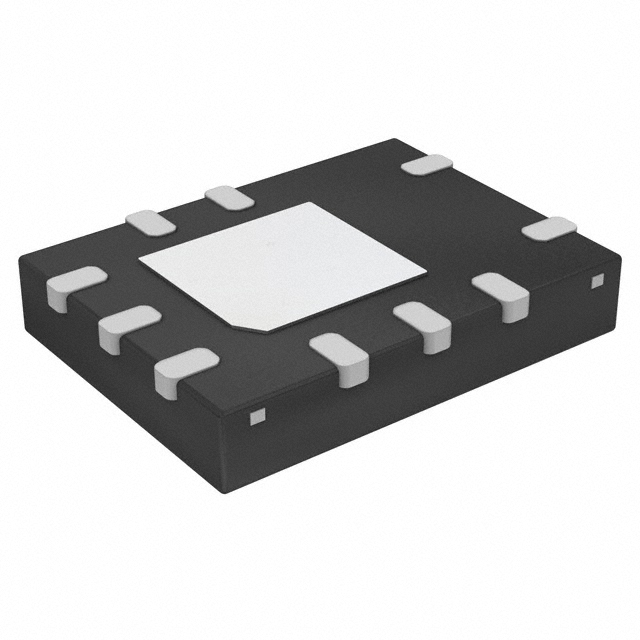

FAN501MPX

FAN501MPX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FAN501MPX with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number FAN501MPX
Manufacturer AMI Semiconductor / ON Semiconductor
Description IC CTRLR DC-DC MULTIPH MLP
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 215874 pcs
Reference Price
(In US Dollars)		3000 pcs6000 pcs15000 pcs30000 pcs
$0.125$0.119$0.115$0.111

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.125

Product parameter

Part Number FAN501MPX Manufacturer AMI Semiconductor / ON Semiconductor
Description IC CTRLR DC-DC MULTIPH MLP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 215874 pcs Data sheet FAN501
Category Integrated Circuits (ICs) Voltage - Supply (Vcc/Vdd) 5.8 V ~ 30 V
Voltage - Start Up 17.5V Voltage - Breakdown -
Topology Flyback Supplier Device Package 10-MLP (4x3)
Series WSaver® Packaging Tape & Reel (TR)
Package / Case 10-WQFN Exposed Pad Output Isolation Isolated
Other Names FAN501MPXTR Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 6 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Internal Switch(s) No Frequency - Switching 85kHz ~ 140kHz
Fault Protection Current Limiting, Over Temperature, Over Voltage Duty Cycle 68.5%
Detailed Description Converter Offline Flyback Topology 85kHz ~ 140kHz 10-MLP (4x3) Control Features -
