FAN2306MMPX

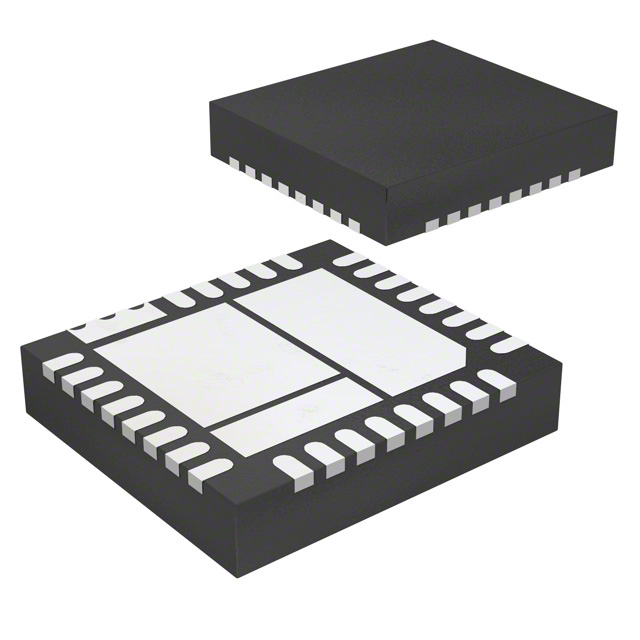

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FAN2306MMPX with confidence from Components-World.HK, 1 Year Warranty
Dowload FAN2306MMPX Details in PDFSee Product Specifications for product details.
Buy FAN2306MMPX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FAN2306MMPX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC REG BUCK ADJ 6A SYNC 34PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.919 | $0.827 | $0.665 | $0.546 | $0.453 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FAN2306MMPX | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC REG BUCK ADJ 6A SYNC 34PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87306 pcs | Data sheet | FAN2306(M) |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 15V | Topology | Buck |
| Synchronous Rectifier | Yes | Supplier Device Package | 34-PQFN (5.5x5) |
| Series | TinyBuck® | Packaging | Cut Tape (CT) |
| Package / Case | 34-PowerTFQFN | Output Type | Adjustable |
| Output Configuration | Positive | Other Names | FAN2306MMPXCT |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of Outputs | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Down |
| Frequency - Switching | 200kHz ~ 1.5MHz | Detailed Description | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 34-PowerTFQFN |
| Current - Output | 6A | Base Part Number | FAN2306 |
