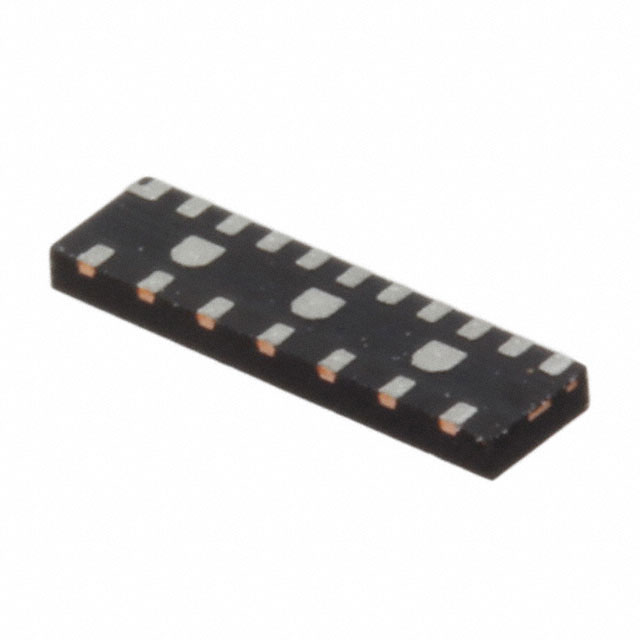

ESD8040MUTAG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESD8040MUTAG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESD8040MUTAG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESD8040MUTAG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TVS DIODE 3.3V 12V 18UDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.533 | $0.475 | $0.371 | $0.306 | $0.242 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ESD8040MUTAG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TVS DIODE 3.3V 12V 18UDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93023 pcs | Data sheet | ESD8040 |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Clamping (Max) @ Ipp | 12V (Typ) | Voltage - Breakdown (Min) | 5.5V |
| Unidirectional Channels | 14 | Type | Zener |
| Supplier Device Package | 18-UDFN (5.5x1.5) | Series | - |
| Power Line Protection | No | Power - Peak Pulse | - |
| Packaging | Cut Tape (CT) | Package / Case | 18-UFDFN Exposed Pad |
| Other Names | ESD8040MUTAGOSCT | Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) | Capacitance @ Frequency | 0.3pF @ 1MHz |
| Base Part Number | ESD8040 | Applications | HDMI |
