ESD5004MXTBG

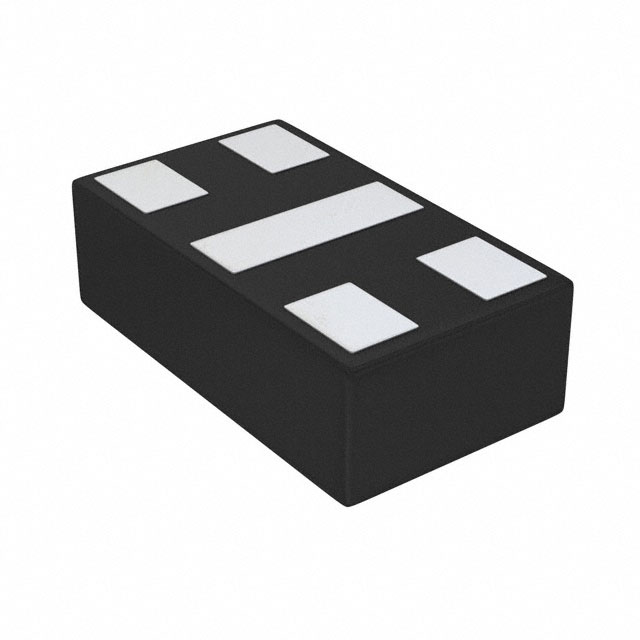

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESD5004MXTBG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESD5004MXTBG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESD5004MXTBG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TVS DIODE 3.3V 9.1V 4X3DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 8000 pcs | 16000 pcs | 24000 pcs | ||
|---|---|---|---|---|---|
| $0.075 | $0.07 | $0.069 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ESD5004MXTBG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TVS DIODE 3.3V 9.1V 4X3DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 305590 pcs | Data sheet | ESD5004 |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Clamping (Max) @ Ipp | 9.1V | Voltage - Breakdown (Min) | 3.9V |
| Unidirectional Channels | 4 | Type | Steering (Rail to Rail) |
| Supplier Device Package | 4-X3DFN (0.53x0.93) | Series | - |
| Power Line Protection | No | Power - Peak Pulse | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-XFDFN Exposed Pad |
| Other Names | ESD5004MXTBGOSTR | Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | Capacitance @ Frequency | 3.5pF @ 1MHz |
| Applications | General Purpose |
