ES1C

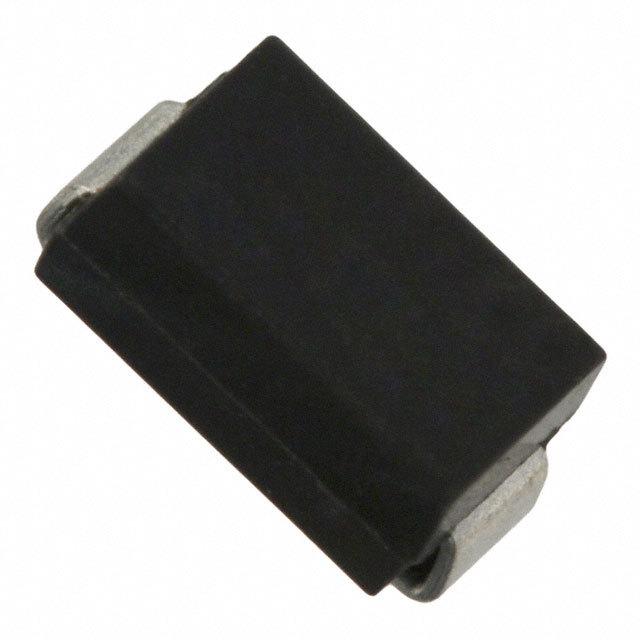

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ES1C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ES1C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ES1C |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE GEN PURP 150V 1A SMA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.138 | $0.105 | $0.065 | $0.045 | $0.034 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ES1C | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | DIODE GEN PURP 150V 1A SMA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 644633 pcs | Data sheet | ES1A - ES1DDO214AC Pkg Drawing |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 920mV @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 150V | Supplier Device Package | SMA (DO-214AC) |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 15ns | Packaging | Cut Tape (CT) |
| Package / Case | DO-214AC, SMA | Other Names | ES1CFSCT |
| Operating Temperature - Junction | -55°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 150V 1A Surface Mount SMA (DO-214AC) | Current - Reverse Leakage @ Vr | 5µA @ 150V |
| Current - Average Rectified (Io) | 1A | Capacitance @ Vr, F | 7pF @ 4V, 1MHz |
| Base Part Number | ES1C |
