EMI5208MUTAG

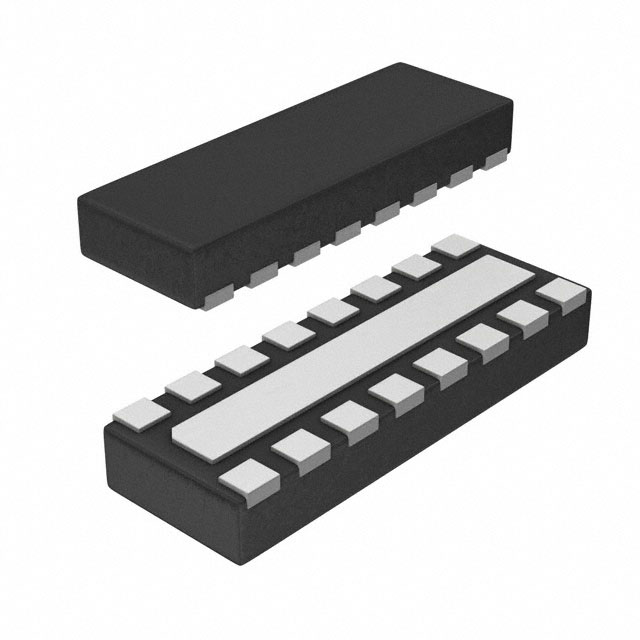

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EMI5208MUTAG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EMI5208MUTAG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EMI5208MUTAG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | FILTER RC(PI) 100 OHM/7PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.186 | $0.16 | $0.12 | $0.094 | $0.073 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EMI5208MUTAG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/7PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 271022 pcs | Data sheet | EMI5204,06,08MU |
| Category | Filters | Voltage - Rated | - |
| Values | R = 100 Ohms, C = 7pF | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) |
| Series | EMI520xMU | Resistance - Channel (Ohms) | 100 |
| Packaging | Original-Reel® | Package / Case | 16-UFDFN Exposed Pad |
| Other Names | EMI5208MUTAGOSDKR | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.022" (0.55mm) |
| Filter Order | 2nd | ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100 Ohms, C = 7pF 16-UFDFN Exposed Pad | Center / Cutoff Frequency | 250MHz (Cutoff) |
| Attenuation Value | 20dB @ 800MHz ~ 5GHz | Applications | Data Lines for Mobile Devices |
