Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > EGP30C

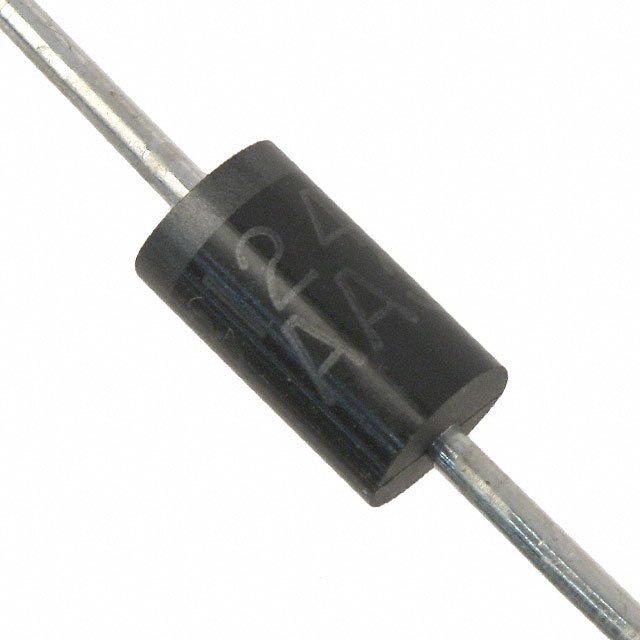

EGP30C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EGP30C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EGP30C
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	DIODE GEN PURP 150V 3A DO201AD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 264068 pcs
Reference Price (In US Dollars)	1250 pcs	2500 pcs	6250 pcs	12500 pcs
Reference Price (In US Dollars)	$0.092	$0.083	$0.078	$0.073

Product parameter
Data sheet

Product parameter

Part Number	EGP30C	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	DIODE GEN PURP 150V 3A DO201AD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	264068 pcs	Data sheet	EGP30A - EGP30K
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	950mV @ 3A
Voltage - DC Reverse (Vr) (Max)	150V	Supplier Device Package	DO-201AD
Speed	Fast Recovery = 200mA (Io)	Series	-
Reverse Recovery Time (trr)	50ns	Packaging	Tape & Reel (TR)
Package / Case	DO-201AD, Axial	Other Names	EGP30C-ND EGP30CTR
Operating Temperature - Junction	-65°C ~ 150°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Detailed Description	Diode Standard 150V 3A Through Hole DO-201AD	Current - Reverse Leakage @ Vr	5µA @ 150V
Current - Average Rectified (Io)	3A	Capacitance @ Vr, F	95pF @ 4V, 1MHz
Base Part Number	EGP30C
