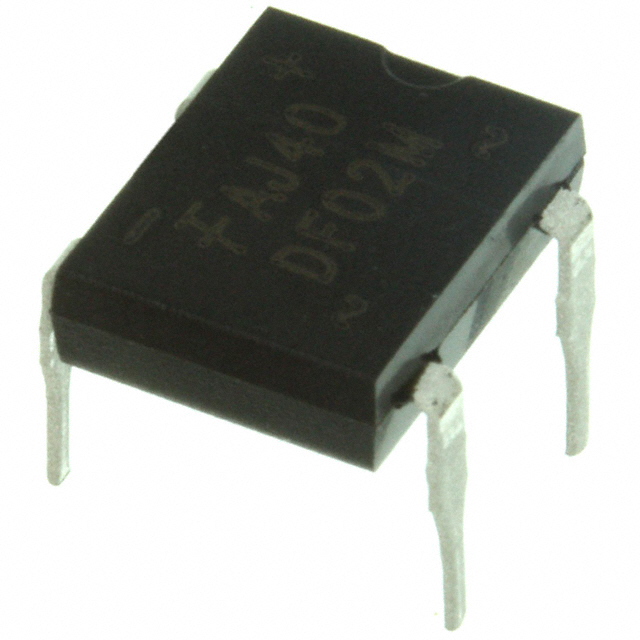

DF02M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF02M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF02M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF02M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE BRIDGE 200V 1.5A 4-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.20 | $0.172 | $0.129 | $0.101 | $0.078 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF02M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | DIODE BRIDGE 200V 1.5A 4-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 298881 pcs | Data sheet | DF005M - DF10MDF005M-10M |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 200V |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A | Technology | Standard |
| Supplier Device Package | 4-DIP | Series | - |
| Packaging | Tube | Package / Case | 4-EDIP (0.300", 7.62mm) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Single Phase |
| Detailed Description | Bridge Rectifier Single Phase Standard 200V Through Hole 4-DIP | Current - Reverse Leakage @ Vr | 5µA @ 200V |
| Current - Average Rectified (Io) | 1.5A | Base Part Number | DF02 |
