Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > CS5171HVBSTGEVB

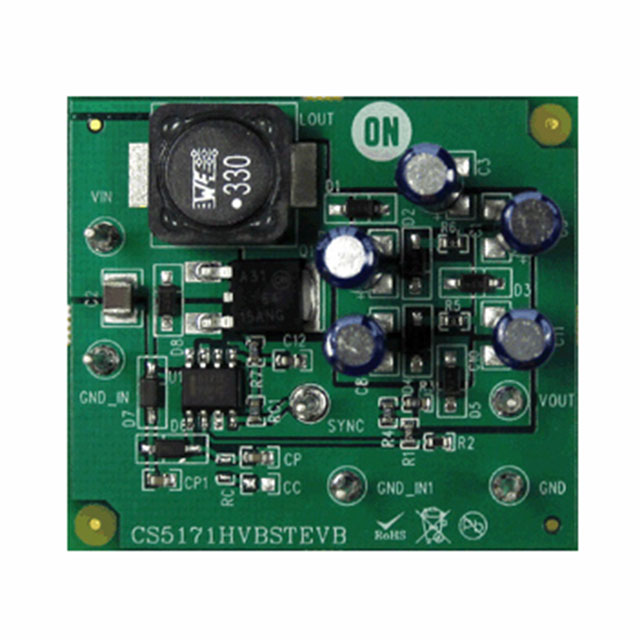

CS5171HVBSTGEVB

CS5171HVBSTGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CS5171HVBSTGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CS5171HVBSTGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD HVBS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1283 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$28.579

Product parameter
Data sheet

Product parameter

Part Number	CS5171HVBSTGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD HVBS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1283 pcs	Data sheet	CS5171/73 Eval Board Test Procedure CS5171-74
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	2.7 V ~ 30 V	Utilized IC / Part	CS5171
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost	Outputs and Type	1, Non-Isolated
Other Names	CS5171HVBSTGEVB-ND CS5171HVBSTGEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Up	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	280kHz	Detailed Description	CS5171 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
Current - Output	-	Board Type	Fully Populated
