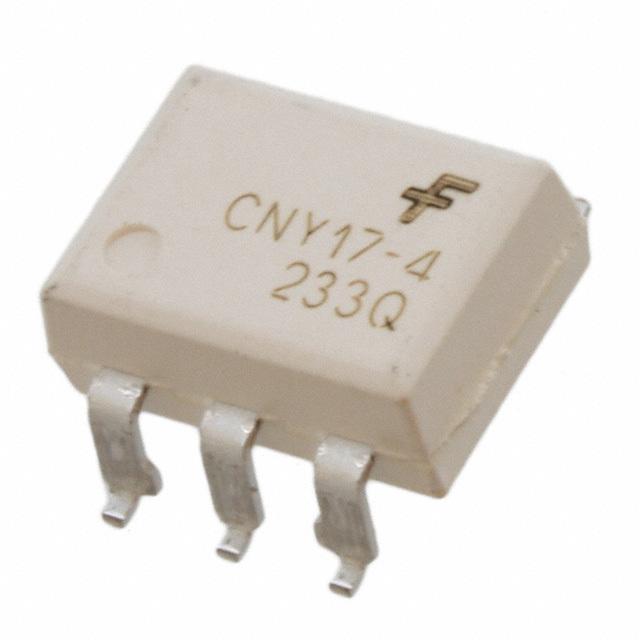

CNY174SM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CNY174SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CNY174SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CNY174SM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.259 | $0.202 | $0.145 | $0.111 | $0.086 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CNY174SM | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 4.17KV TRANS W/BASE 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 233080 pcs | Data sheet | CNY17(F)1-4M, MOC8106,07M |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 4170Vrms | Voltage - Forward (Vf) (Typ) | 1.35V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 2µs, 3µs |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3.5µs (Max) | Packaging | Tube |
| Package / Case | 6-SMD, Gull Wing | Output Type | Transistor with Base |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD | Current Transfer Ratio (Min) | 160% @ 10mA |
| Current Transfer Ratio (Max) | 320% @ 10mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 60mA |
