CM6305

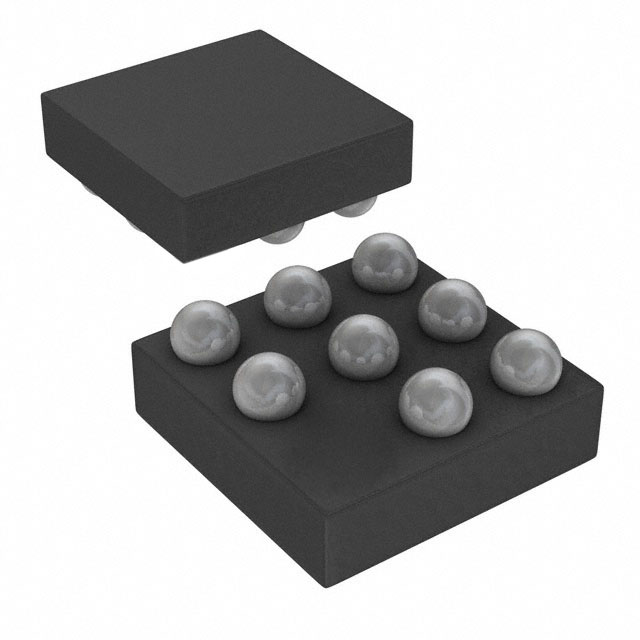

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM6305 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM6305 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM6305 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | FILTER RC(PI) ESD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM6305 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | FILTER RC(PI) ESD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5050 pcs | Data sheet | CM6305 |
| Category | Filters | Voltage - Rated | - |
| Values | R = 47 Ohms, 100 Ohms, C = 10pF | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.046" L x 0.046" W (1.16mm x 1.16mm) |
| Series | - | Resistance - Channel (Ohms) | 47, 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 8-UFBGA, WLCSP |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.025" (0.64mm) |
| Filter Order | 2nd | ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 3 Channel R = 47 Ohms, 100 Ohms, C = 10pF 8-UFBGA, WLCSP | Center / Cutoff Frequency | - |
| Attenuation Value | - | Applications | Data Lines for Mobile Devices |
