CM1425-03CP

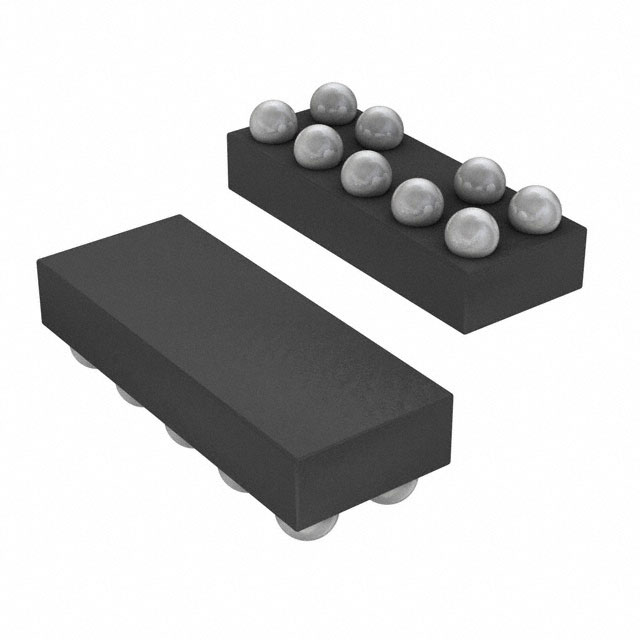

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM1425-03CP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM1425-03CP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM1425-03CP |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | FILTER RC(PI) 100 OHM/20PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM1425-03CP | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/20PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5137 pcs | Data sheet | CM1425 |
| Category | Filters | Voltage - Rated | - |
| Values | R = 100 Ohms, C = 20pF | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.097" L x 0.038" W (2.47mm x 0.97mm) |
| Series | - | Resistance - Channel (Ohms) | 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 9-UFBGA, WLCSP |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.026" (0.65mm) |
| Filter Order | 2nd | ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100 Ohms, C = 20pF 9-UFBGA, WLCSP | Center / Cutoff Frequency | 86MHz (Cutoff) |
| Attenuation Value | 30dB @ 800MHz ~ 3GHz | Applications | Data Lines for Mobile Devices |
