CM1405-03CP

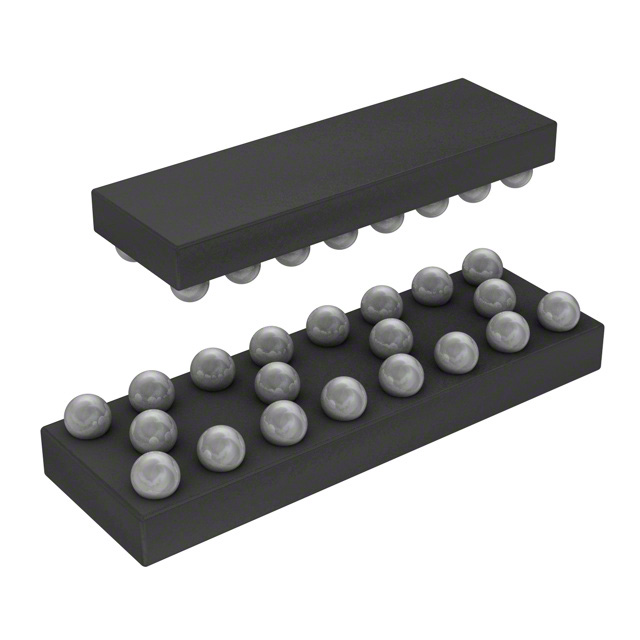

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM1405-03CP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM1405-03CP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM1405-03CP |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | FILTER RC(PI) 100 OHM/25PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM1405-03CP | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/25PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5830 pcs | Data sheet | CM1405 |
| Category | Filters | Voltage - Rated | - |
| Values | R = 100 Ohms, C = 25pF | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.157" L x 0.057" W (4.00mm x 1.46mm) |
| Series | - | Resistance - Channel (Ohms) | 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 20-WFBGA, WLCSP |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 8 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.028" (0.70mm) |
| Filter Order | 2nd | ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100 Ohms, C = 25pF 20-WFBGA, WLCSP | Center / Cutoff Frequency | 70MHz (Cutoff) |
| Attenuation Value | 35dB @ 800MHz ~ 2.7GHz | Applications | Data Lines for Mobile Devices |
