BXL4001

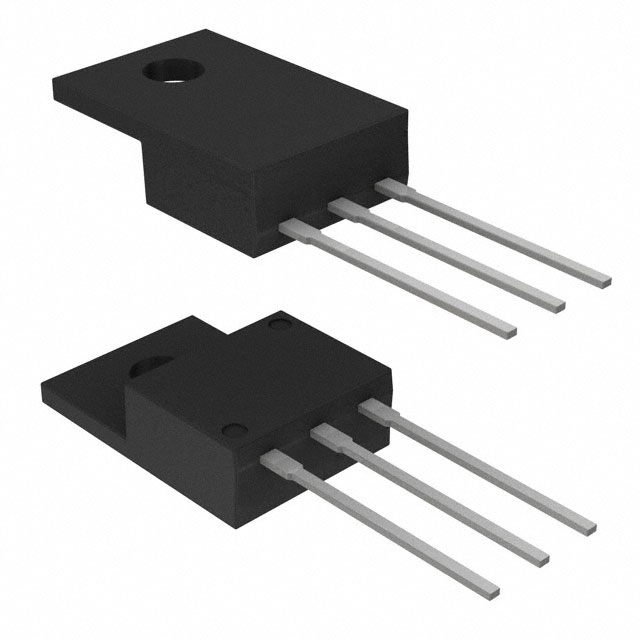

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BXL4001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BXL4001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BXL4001 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 75V 85A TO-220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BXL4001 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 75V 85A TO-220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4848 pcs | Data sheet | BXL4001 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220(LS) | Series | - |
| Rds On (Max) @ Id, Vgs | 12.4 mOhm @ 43A, 10V | Power Dissipation (Max) | 1.75W (Ta), 75W (Tc) |
| Packaging | Bulk | Package / Case | TO-220-3 |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 6700pF @ 20V | Gate Charge (Qg) (Max) @ Vgs | 115nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 75V |
| Detailed Description | N-Channel 75V 85A (Ta) 1.75W (Ta), 75W (Tc) Through Hole TO-220(LS) | Current - Continuous Drain (Id) @ 25°C | 85A (Ta) |
