Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > BAV102

BAV102

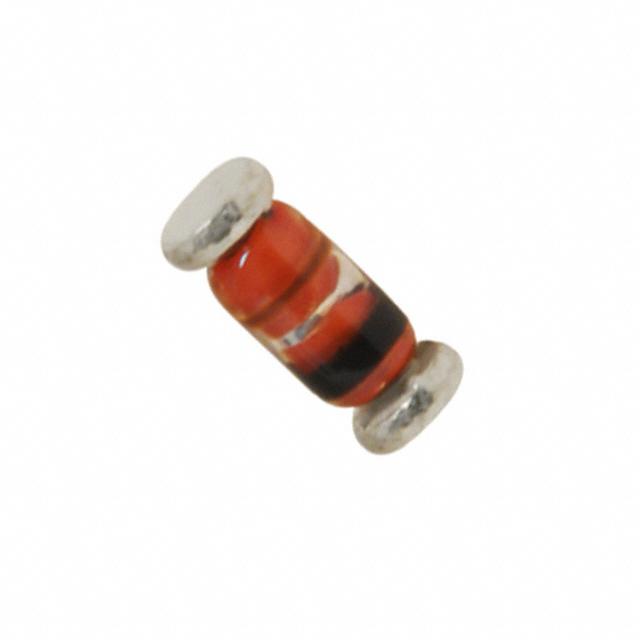

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BAV102 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BAV102
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	DIODE GEN PURP 150V 200MA LL34
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	25000 pcs	62500 pcs	125000 pcs
~~In Stock~~ 2601376 pcs
Reference Price (In US Dollars)	2500 pcs	5000 pcs	12500 pcs
	$0.015	$0.013	$0.011
	$0.011	$0.01	$0.009

Product parameter
Data sheet

Product parameter

Part Number	BAV102	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	DIODE GEN PURP 150V 200MA LL34	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2601376 pcs	Data sheet	BAV102
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Voltage - DC Reverse (Vr) (Max)	150V	Supplier Device Package	SOD-80
Speed	Small Signal =< 200mA (Io), Any Speed	Series	-
Reverse Recovery Time (trr)	50ns	Packaging	Tape & Reel (TR)
Package / Case	DO-213AC, MINI-MELF, SOD-80	Other Names	BAV102FS BAV102FS-ND BAV102FSTR
Operating Temperature - Junction	-65°C ~ 200°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	2 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Detailed Description	Diode Standard 150V 200mA Surface Mount SOD-80	Current - Reverse Leakage @ Vr	100nA @ 150V
Current - Average Rectified (Io)	200mA	Capacitance @ Vr, F	5pF @ 0V, 1MHz
Base Part Number	BAV102
