Home > Products > Integrated Circuits (ICs) > Logic - Gates and Inverters > 74VHCT00ASJX

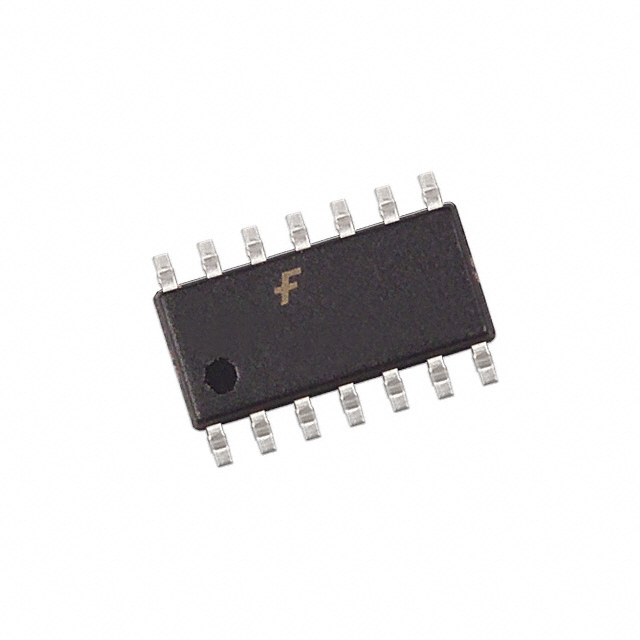

74VHCT00ASJX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 74VHCT00ASJX with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	74VHCT00ASJX
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC GATE NAND 4CH 2-INP 14SOP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4654 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	74VHCT00ASJX	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC GATE NAND 4CH 2-INP 14SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4654 pcs	Data sheet	74VHCT00A
Category	Integrated Circuits (ICs)	Voltage - Supply	4.5 V ~ 5.5 V
Supplier Device Package	14-SOP	Series	74VHCT
Packaging	Tape & Reel (TR)	Package / Case	14-SOIC (0.209", 5.30mm Width)
Operating Temperature	-40°C ~ 85°C	Number of Inputs	2
Number of Circuits	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Max Propagation Delay @ V, Max CL	7.9ns @ 5V, 50pF
Logic Type	NAND Gate	Logic Level - Low	0.8V
Logic Level - High	2V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	NAND Gate IC 4 Channel 14-SOP
Current - Quiescent (Max)	2µA	Current - Output High, Low	8mA, 8mA
Base Part Number	74VHCT00
