Home > Products > Integrated Circuits (ICs) > Logic - Flip Flops > 74LCX74BQX

74LCX74BQX

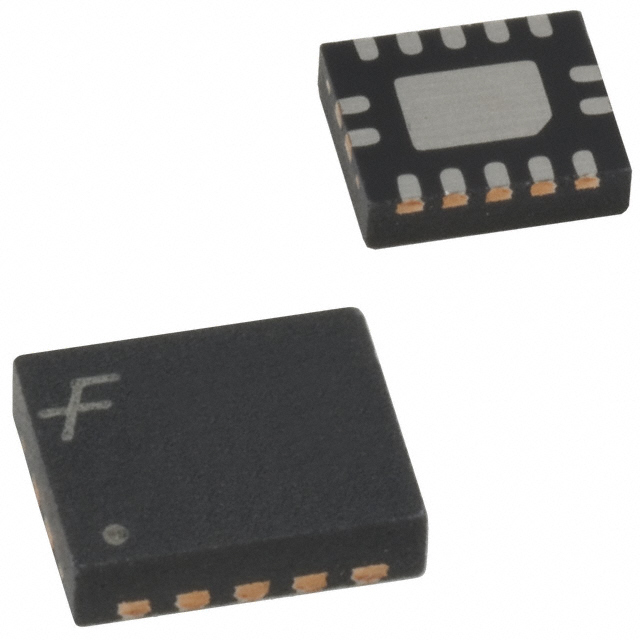

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 74LCX74BQX with confidence from Components-World.HK, 1 Year Warranty

Dowload 74LCX74BQX Details in PDF

Request a Quote

Part Number	74LCX74BQX
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC FF D-TYPE DUAL 1BIT 14DQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 188288 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.264	$0.234	$0.179	$0.142	$0.113

Product parameter
Data sheet

Product parameter

Part Number	74LCX74BQX	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC FF D-TYPE DUAL 1BIT 14DQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	188288 pcs	Data sheet	74LCX74
Category	Integrated Circuits (ICs)	Voltage - Supply	2 V ~ 3.6 V
Type	D-Type	Trigger Type	Positive Edge
Series	74LCX	Packaging	Cut Tape (CT)
Package / Case	14-WFQFN Exposed Pad	Output Type	Differential
Other Names	74LCX74BQXCT	Operating Temperature	-40°C ~ 85°C (TA)
Number of Elements	2	Number of Bits per Element	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Propagation Delay @ V, Max CL	7ns @ 3.3V, 50pF	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance	7pF
Function	Set(Preset) and Reset	Current - Quiescent (Iq)	10µA
Current - Output High, Low	24mA, 24mA	Clock Frequency	150MHz
Base Part Number	74LCX74
